RING 2

Item code: 85.FLG.60P3.03.GHBE

Product type: Outdoor
Category: Floodlights
Family: RING
Subfamily: RING 2

Description

Lavov floodlight from the family RING with a power of 60W and a beam angle 30°,60°,90°,10x35°,20x40°, GOBO, ZOOM, with a Total lumen output of 1664Lm. with a CCT of 3000K.
Made in die cast aluminum, finished in black - Special RAL on
request. Input AC 220-230V 50Hz, DALI 2 Control.

Technical description

Lavov floodlight from the family RING with a power of 60W and a beam angle 30°,60°,90°,10x35°,20x40°, GOBO, ZOOM, with a Total lumen output of 1664Lm. with a CCT of 3000K.
Made in die cast aluminum, finished in black - Special RAL on
request. Input AC 220-230V 50Hz, DALI 2 Control.

Materials

Die Cast Aluminum

Optical system

beam angle of GOBO 30° degrees

Product

Real power (W)

60

Real luminous flux (Lm)

1664

Luminous efficiency (Lm/W)

28

Beam angle (º)

GOBO 25°

Life time (h)

50000h L90 B10

IP

67

Electrical class insulation

Class I

Colour

Int(Matte black) , Ext(special RAL on request)

Equipment

Driver

Included-Integrated

Control gear

DALI 2

Dimensions

Product dimensions (mm)

φ220*H255mm

Mounting arm dimensions (mm)

Custom-made

Net weight (g)

5000g

Light Source

Light source

LED

Type of LED

SMD

Colour temperature (K)

3000K

Colour consistency (SDCM)

SDCM<2

CRI

80

IK

08

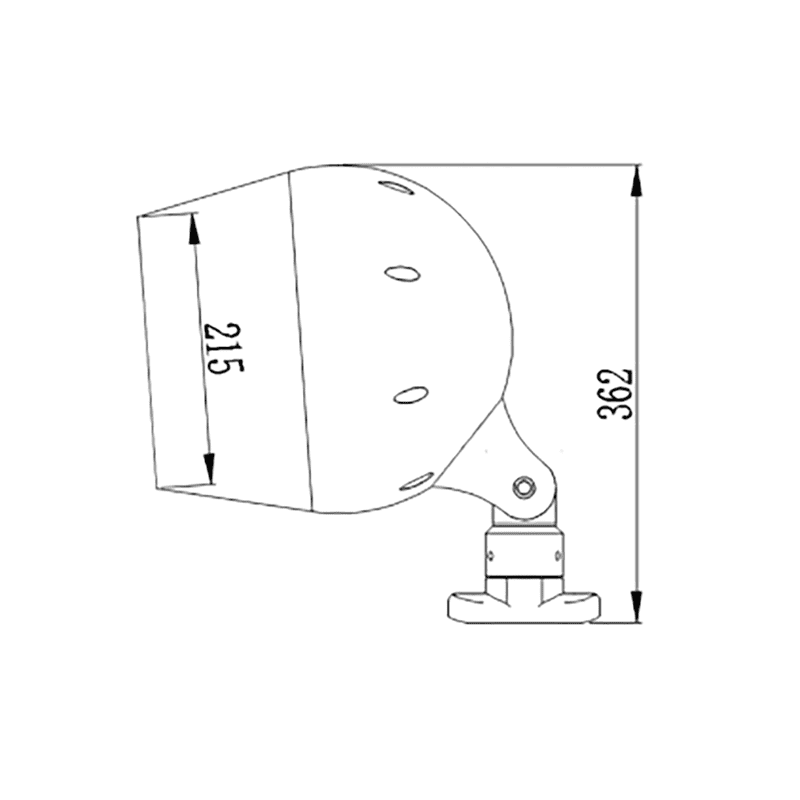

Scheme

220x225.
