RING 3

Item code: 85.FLZ.36P3.03.HBEB

Product type: Outdoor
Category: Floodlights
Family: RING
Subfamily: RING 3

Description

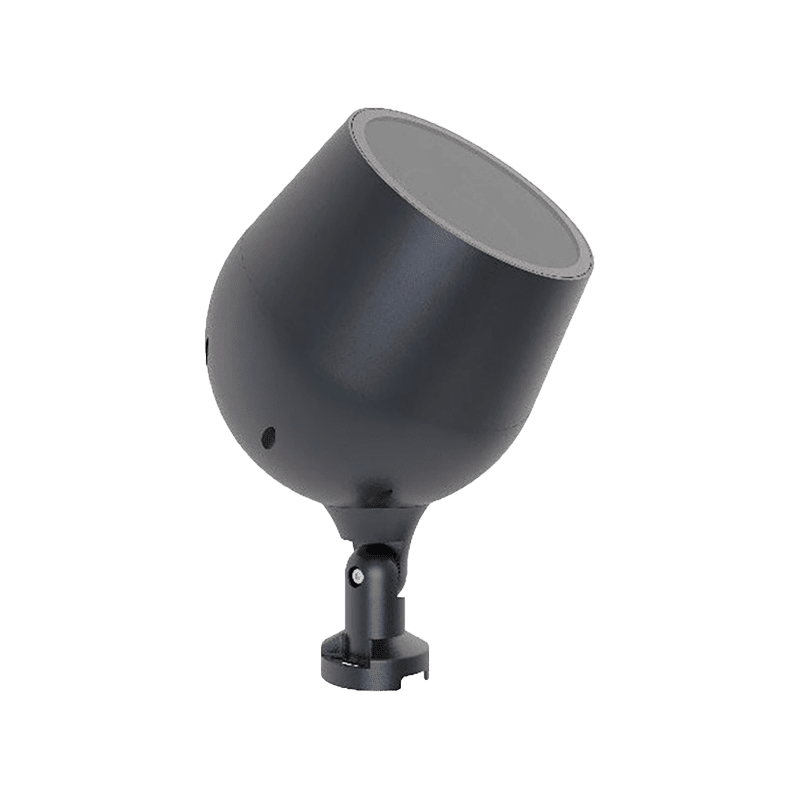

Lavov floodlight from the family RING with a power of 36W and a beam angle 30°,60°,90°,10x35°,20x40°, GOBO, ZOOM, with a Total lumen output of 2980Lm. with a CCT of 3000K.
Made in die cast aluminum, finished in black - Special RAL on
request. Input AC 220-230V 50Hz, DALI 2 Control.

Technical description

Lavov floodlight from the family RING with a power of 36W and a beam angle 30°,60°,90°,10x35°,20x40°, GOBO, ZOOM, with a Total lumen output of 2980Lm. with a CCT of 3000K.
Made in die cast aluminum, finished in black - Special RAL on
request. Input AC 220-230V 50Hz, DALI 2 Control.

Materials

Die Cast Aluminum

Optical system

beam angle of ZOOM 10 to 50°

Product

Real power (W)

36

Real luminous flux (Lm)

2980

Luminous efficiency (Lm/W)

85

Beam angle (º)

Zoom 10 to 50°

Life time (h)

50000h L90 B10

IP

67

Electrical class insulation

Class I

Colour

Int(Matte black), Ext(special RAL on request)

Equipment

Driver

Included-Integrated

Control gear

DALI 2

Dimensions

Product dimensions (mm)

φ200*H205mm

Mounting arm dimensions (mm)

custom made

Net weight (g)

2500g

Light Source

Light source

LED

Type of LED

SMD

Colour temperature (K)

3000K

Colour consistency (SDCM)

SDCM<2

CRI

80

IK

08

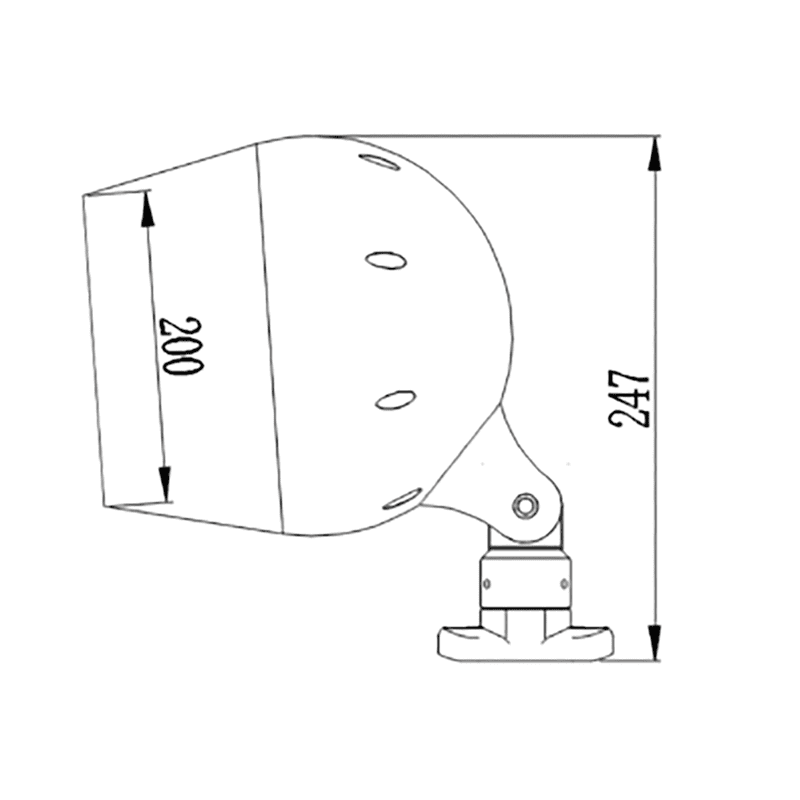

Scheme

200x205
