Trim cardan

Item code: 86.D090.2439.01

Product type: Indoor
Category: Downlights
Family: Cardan A
Subfamily: Trim cardan

Description

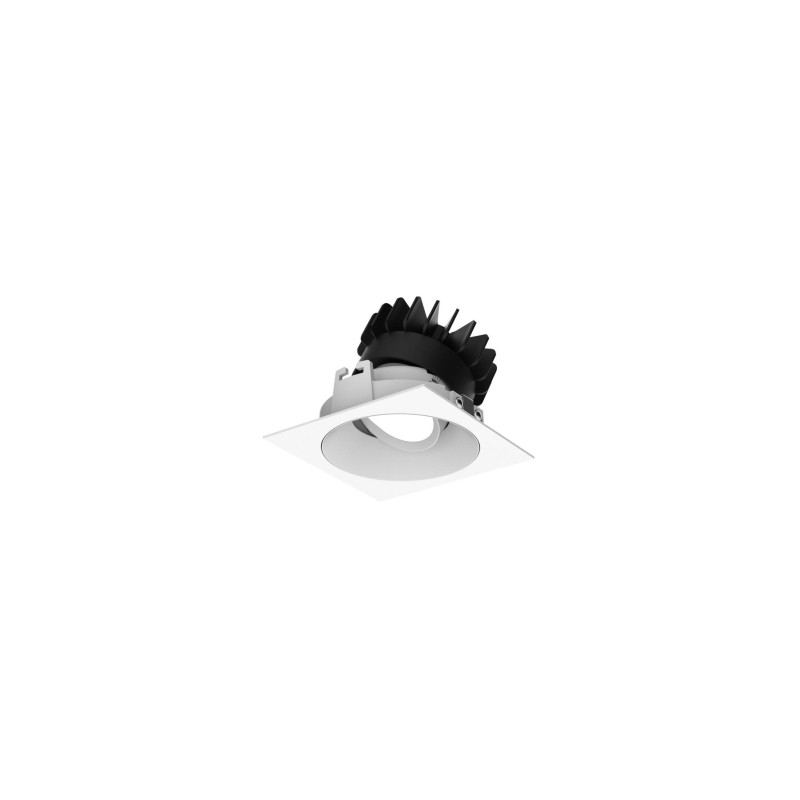

Lavov downlight from the family Trim cardan with a power of 25W and a beam angle of 50º. Finished in white colour.

Technical description

Lavov downlight from the family Trim cardan with a power of 25W and a beam angle of 50º. Finished in white colour. With a total lumen output of 2394lm and a luminous efficacy of 95.76lm/W. Made in die cast aluminium and PC lenses. Driver DALI Casamby ready. CCT 4000K.

Materials

die cast aluminium and PC lenses

Product

Real power (W)

25

Real luminous flux (Lm)

2394

Luminous efficiency (Lm/W)

95.76

Beam angle (º)

50º

Life time (h)

50000hrs L80B10

IP

IP44

Colour

white

Equipment

Control gear included

yes

Control gear

DALI Casamby ready

Flicker Free

yes

Dimensions

Product dimensions (mm)

L112*W112*H110mm

Light Source

Light source

led

Type of LED

COB

Colour temperature (K)

4000

Colour consistency (SDCM)

SDCM<3

CRI

90

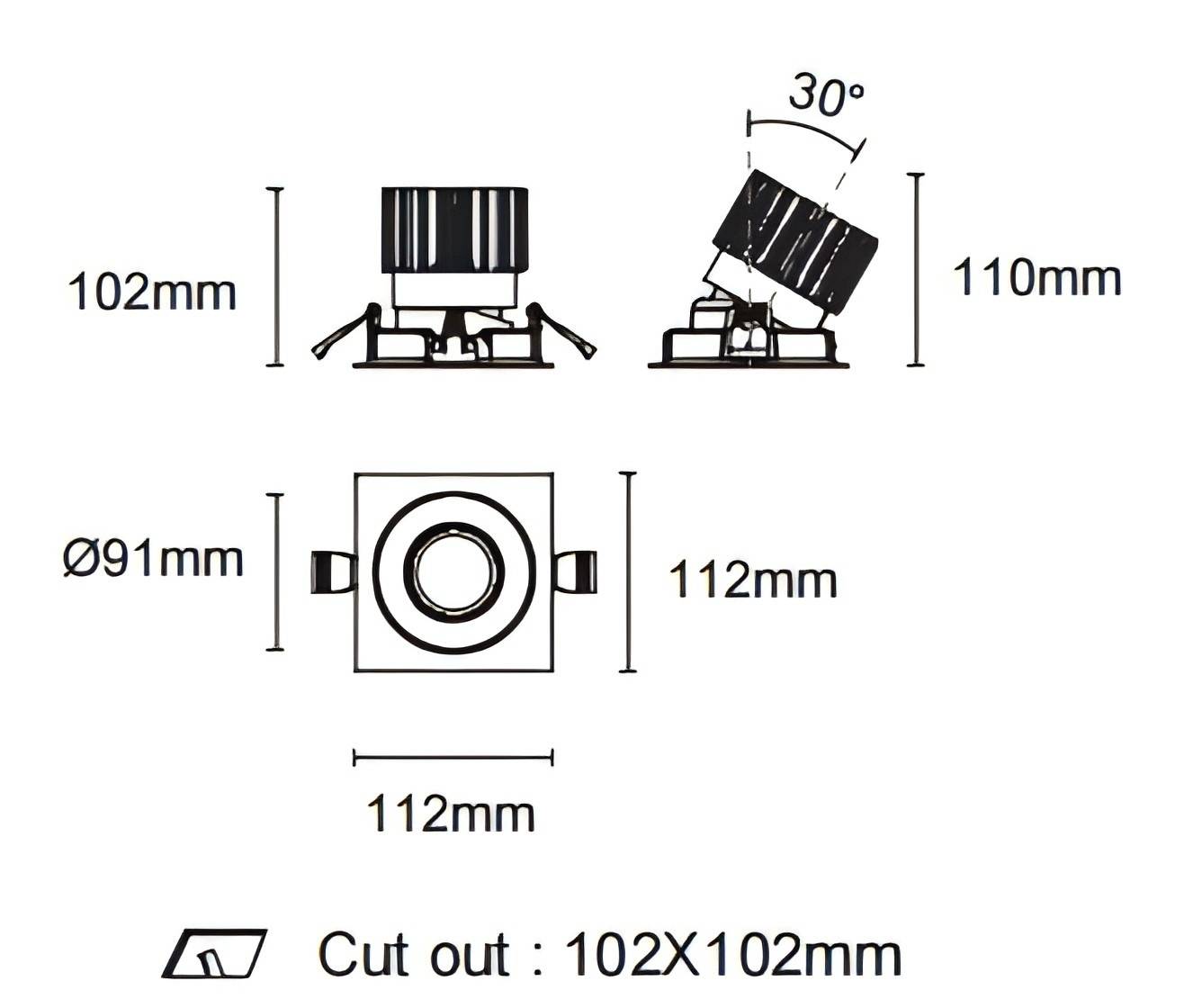

Scheme

86.D090.2439.xx-scheme-01
