MINI WW

Item code: 86.D108.2251.02

Product type: Indoor
Category: Downlights
Family: MINI B
Subfamily: MINI WW

Description

Lavov downlight from the family MINI WW with a power of 15W and a beam angle of wall washer. Finished in Black colour. Wall washer fix version.

Technical description

Lavov downlight from the family MINI WW with a power of 15W and a beam angle of wall washer. Finished in Black colour. Wall washer fix version.With a total lumen output of 1020lm and a luminous efficacy of 68lm/W. Made in Die Cast Aluminum. Driver ON/OFF. CCT 2700K.

Materials

Die Cast Aluminum

Optical system

Lens

Product

Real power (W)

15

Real luminous flux (Lm)

1020

Luminous efficiency (Lm/W)

68

Beam angle (º)

wall washer

Life time (h)

50000 h L80B10

IP

20

Electrical class insulation

Clas II

Colour

Black

Equipment

Control gear included

Yes

Control gear

ON/OFF

Flicker Free

Yes

Dimensions

Product dimensions (mm)

ø60*H110mm

Light Source

Light source

LED

Type of LED

SMD

Colour temperature (K)

2700

Colour consistency (SDCM)

SDCM<3

CRI

90

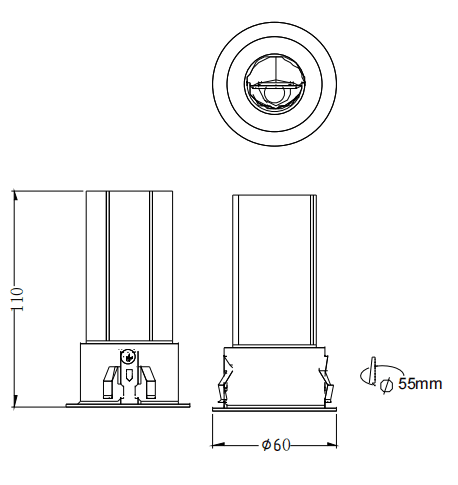

Scheme

86.D108.2251.xx-scheme-01
