Waterproof

Item code: 86.D130.1423.01

Product type: Indoor
Category: Downlights
Family: Waterproof
Subfamily: Waterproof

Description

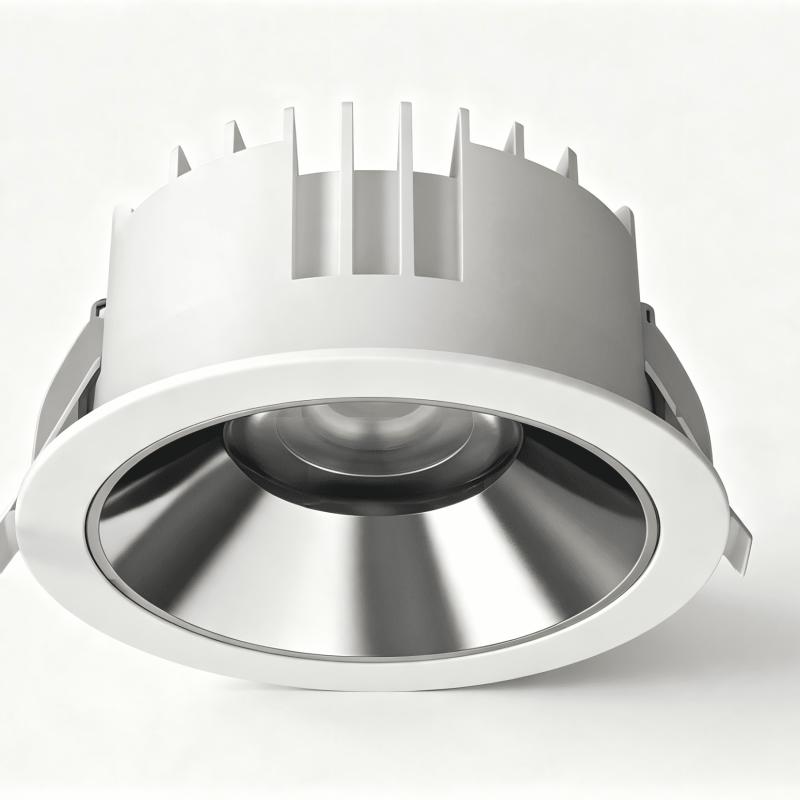

Lavov downlight from the family Waterproof eco with a power of 15W and a 25 degrees beam angle.

Technical description

Lavov downlight from the family Waterproof eco with a power of 15W and a 25 degrees beam angle. With a total lumen output of 1275lm and a luminous efficiency of 85lm/W. Driver DALI .Made in die cast aluminium . Class II issolation. IP65 . Mains voltage 180-240V . UGR. Finished in White colour. CCT 4000K.CRI90. Dimensions ø110*65mm cut size: ø100mm.

Materials

die cast aluminium

Optical system

Reflector

Product

Real power (W)

15

Real luminous flux (Lm)

1275

Luminous efficiency (Lm/W)

85

Beam angle (º)

25

IP

65.0

Electrical class insulation

Class II

Electrical feeding

180-240V

Colour

White

Equipment

Control gear included

Yes

Control gear

DALI

Flicker Free

Yes

Dimensions

Product dimensions (mm)

ø110*65mm cut size: ø100mm

Light Source

Light source

LED

Type of LED

COB

Colour temperature (K)

4000

Colour consistency (SDCM)

SDCM<5

CRI

90

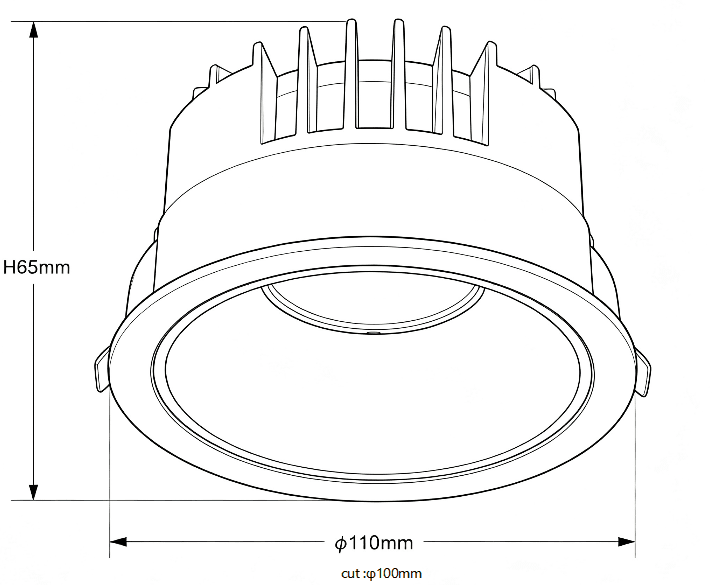

Scheme

86.D130.1423.01-scheme-01
