Waterproof

Item code: 86.D130.2343.01

Product type: Indoor
Category: Downlights
Family: Waterproof
Subfamily: Waterproof

Description

Lavov downlight from the family Waterproof eco with a power of 30W and a 55 degrees beam angle.

Technical description

Lavov downlight from the family Waterproof eco with a power of 30W and a 55 degrees beam angle. With a total lumen output of 2550lm and a luminous efficiency of 85lm/W. Driver DALI .Made in die cast aluminium . Class II issolation. IP65 . Mains voltage 180-240V . UGR. Finished in White colour. CCT 3000K.CRI90. Dimensions ø150*85mm cut size: ø135mm.

Materials

die cast aluminium

Optical system

Reflector

Product

Real power (W)

30

Real luminous flux (Lm)

2550

Luminous efficiency (Lm/W)

85

Beam angle (º)

55

IP

65.0

Electrical class insulation

Class II

Electrical feeding

180-240V

Colour

White

Equipment

Control gear included

Yes

Control gear

DALI

Flicker Free

Yes

Dimensions

Product dimensions (mm)

ø150*85mm cut size: ø135mm

Light Source

Light source

LED

Type of LED

COB

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<5

CRI

90

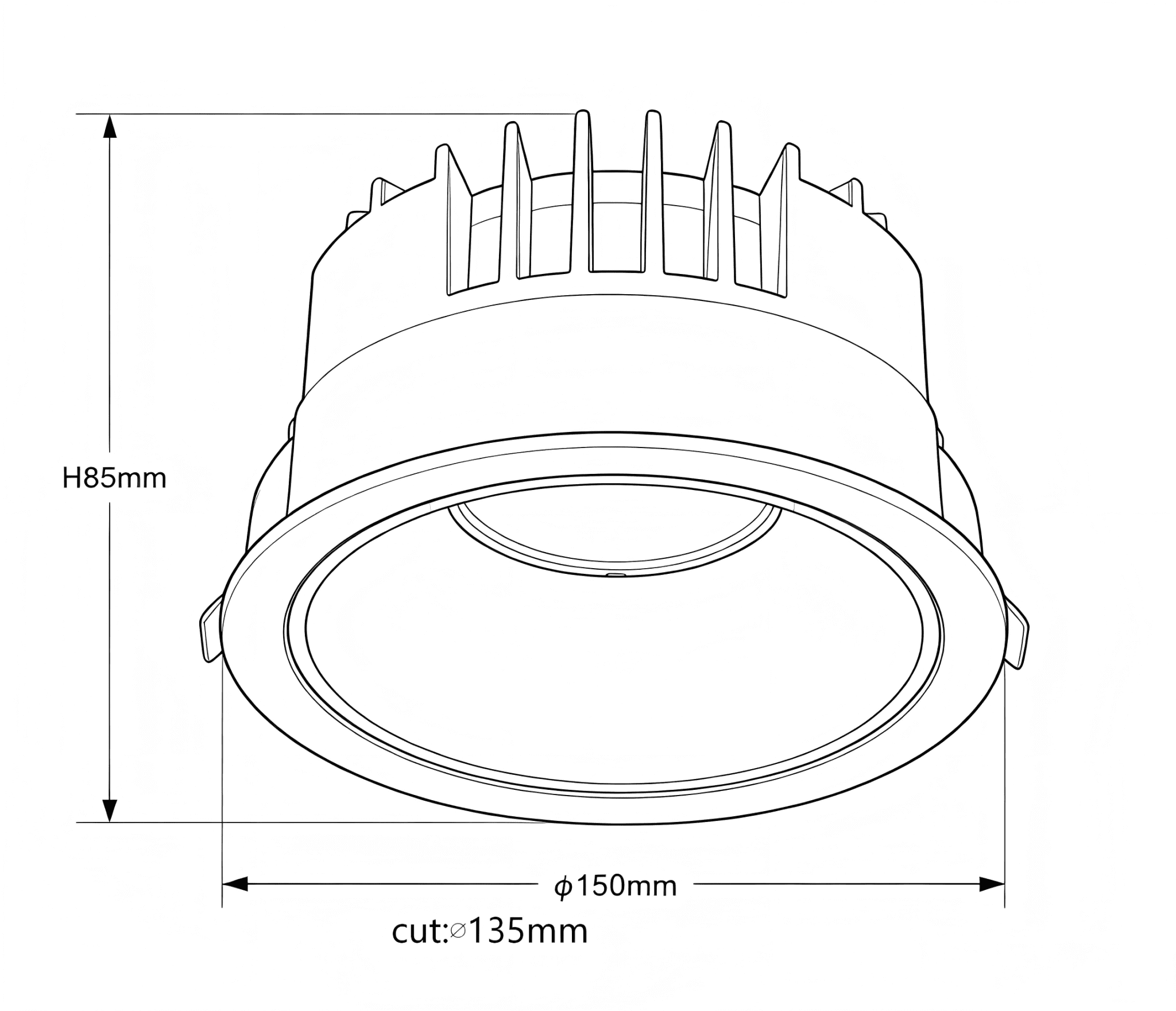

Scheme

86.D130.2343.01-scheme-01
