MLINE

Item code: 86.L002.1392.01

Product type: Indoor
Category: Linear Systems
Family: MLINE
Subfamily: MLINE

Description

Lavov linear system from the family MLINE with a power of 20W and an optics 77 degrees beam angle. CCT 3000. CRI 80.

Technical description

Lavov linear system from the family MLINE with a power of 20W and an optics 77 degrees beam angle. CCT 3000. CRI 80. Microprismatic diffuser. UGR<19. With a total lumen output of 1800lm and an efficacy of 90lm/W . Made in Extruded Aluminium and finished in White color. 0-10V Dim driver.

Materials

Extruded Aluminium

Installation instructions

Difusor microprismatico

Product

Real power (W)

20

Real luminous flux (Lm)

1800

Luminous efficiency (Lm/W)

90

Beam angle (ยบ)

77

Life time (h)

50000h L80B10

IP

20

Colour

White

U. G. R

<19

Equipment

Control gear included

Yes

Control gear

0-10V Dim

Dimensions

Product dimensions (mm)

75x75X600mm

Light Source

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

80

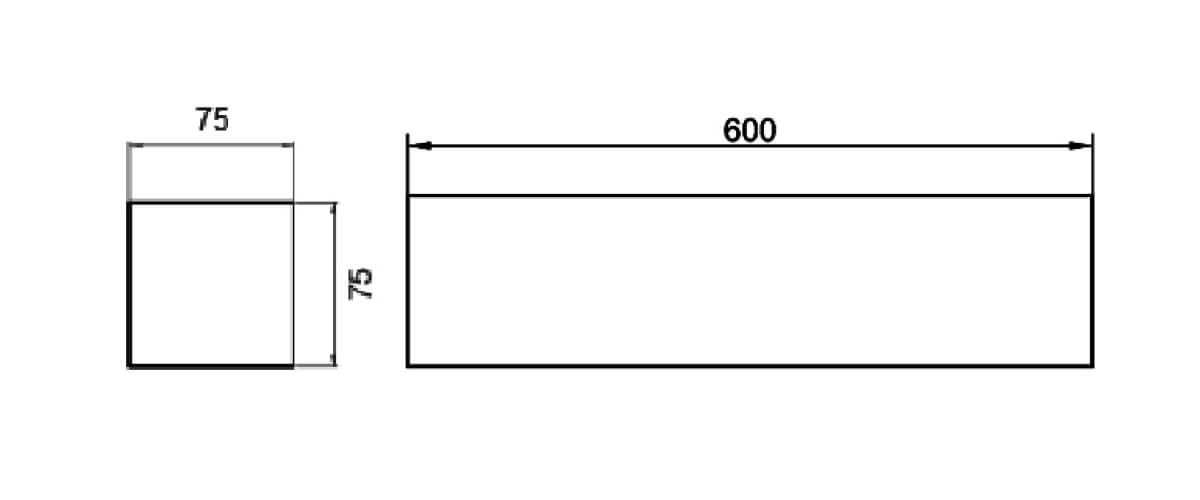

Scheme

86.L002.1392.**-scheme-01
