MLINE

Item code: 86.L002.3303.01

Product type: Indoor
Category: Linear Systems
Family: MLINE
Subfamily: MLINE

Description

Lavov linear system from the family MLINE with a power of 60W and an optics 110 degrees beam angle. CCT 3000. CRI 80.

Technical description

Lavov linear system from the family MLINE with a power of 60W and an optics 110 degrees beam angle. CCT 3000. CRI 80. PC Diffuser. UGR22. With a total lumen output of 6000lm and an efficacy of 100lm/W . Made in Extruded Aluminium and finished in White color. DALI driver.

Materials

Extruded Aluminium

Installation instructions

Difusor PC

Product

Real power (W)

60

Real luminous flux (Lm)

6000

Luminous efficiency (Lm/W)

100

Beam angle (ยบ)

110

Life time (h)

50000h L80B10

IP

20

Colour

White

U. G. R

22

Equipment

Control gear included

Yes

Control gear

DALI

Dimensions

Product dimensions (mm)

75x75X1800mm

Light Source

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

80

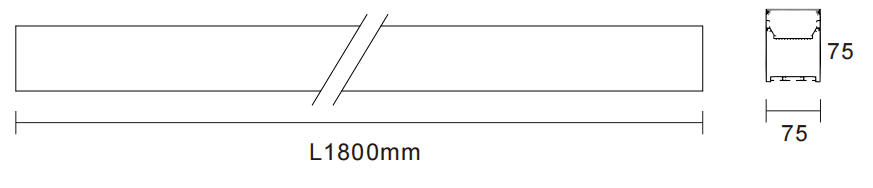

Scheme

86.L002.3303.**-scheme-01
