SLINER

Item code: 86.LR01.3491.02

Product type: Indoor
Category: Linear Systems
Family: SLINER

Description

Lavov linear system from the family SLINER with a power of 45W and an optics 77 degrees beam angle. CCT 4000. CRI 80.

Technical description

Lavov linear system from the family SLINER with a power of 45W and an optics 77 degrees beam angle. CCT 4000. CRI 80. Microprismatic diffuser. UGR<19. With a total lumen output of 5400lm and an efficacy of 120lm/W . Made in Extruded Aluminium and finished in Black color. ON-OFF driver.

Materials

Extruded Aluminium

Installation instructions

Difusor microprismatico

Product

Real power (W)

45

Real luminous flux (Lm)

5400

Luminous efficiency (Lm/W)

120

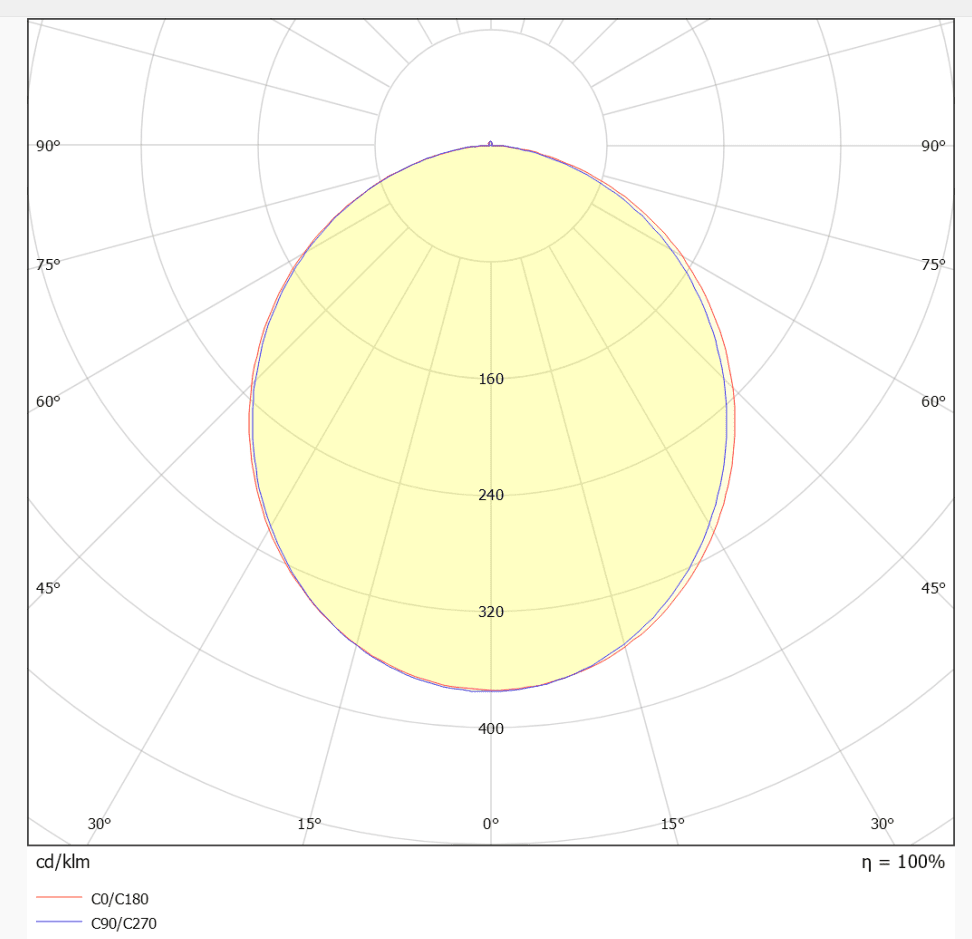

Beam angle (ยบ)

77

Life time (h)

50000h L80B10

IP

20

Colour

Black

U. G. R

<19

Equipment

Control gear included

Yes

Control gear

ON-OFF

Dimensions

Product dimensions (mm)

Hole size 1803xW50mm

Light Source

Colour temperature (K)

4000

Colour consistency (SDCM)

SDCM<3

CRI

80

Scheme

86.LR01.3491.**-scheme-01
