FLAT-DUO

Item code: 86.OB25.1341.02

Product type: Outdoor
Category: Bollards
Family: FLAT-DUO

Description

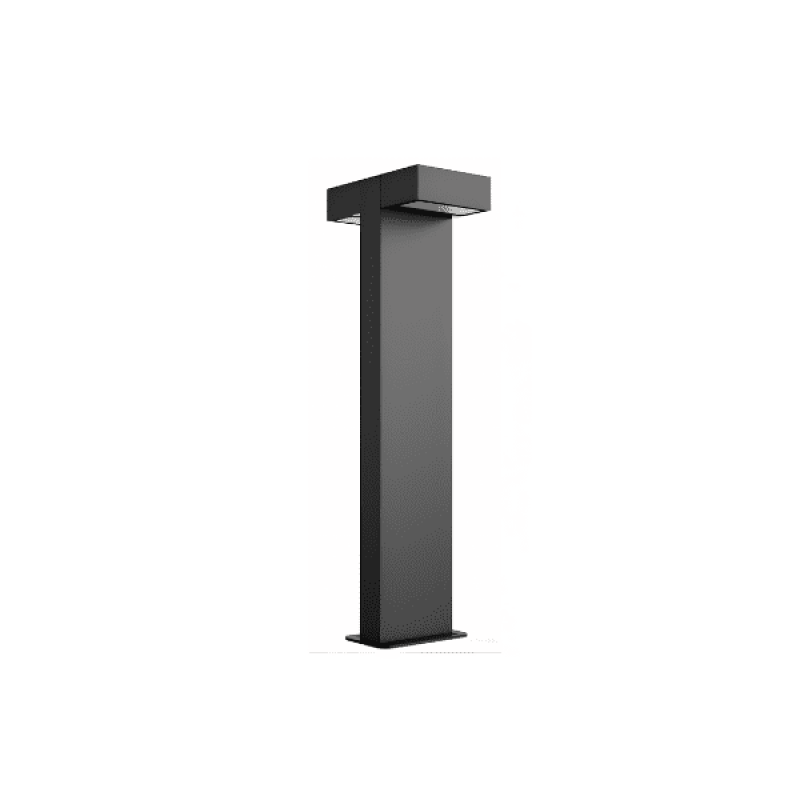

Lavov bollard from the family FLAT-DUO, with a power of 2X12W and a 2X120 degrees beam angle. Finished in Black colour.Dimensions 200x336xH800mm.

Technical description

Lavov bollard from the family FLAT-DUO, with a power of 2X12W and a 2X120 degrees beam angle. Finished in Black colour.Dimensions 200x336xH800mm.. With a total lumen output of 2X1500lm and a luminous efficiency of 125lm/W. CCT 3000K. Driver ON-OFF. Made in Die Cast Aluminium Body, extruded aluminium pole, PC lenses and tempered glass cover . .IP66. IK09

Materials

Die Cast Aluminium Body, extruded aluminium pole, PC lenses and tempered glass cover

Optical system

PC lenses

Product

Real power (W)

2X12

Real luminous flux (Lm)

2X1500

Luminous efficiency (Lm/W)

125

Beam angle (ยบ)

2X120

Life time (h)

50000h L80B10

IP

IP66

Colour

Black

Equipment

Control gear included

Yes

Control gear

ON-OFF

Dimensions

Product dimensions (mm)

200x336xH800mm

Light Source

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

90

IK

IK09

Scheme

86.OB25.1341.02-scheme-01
