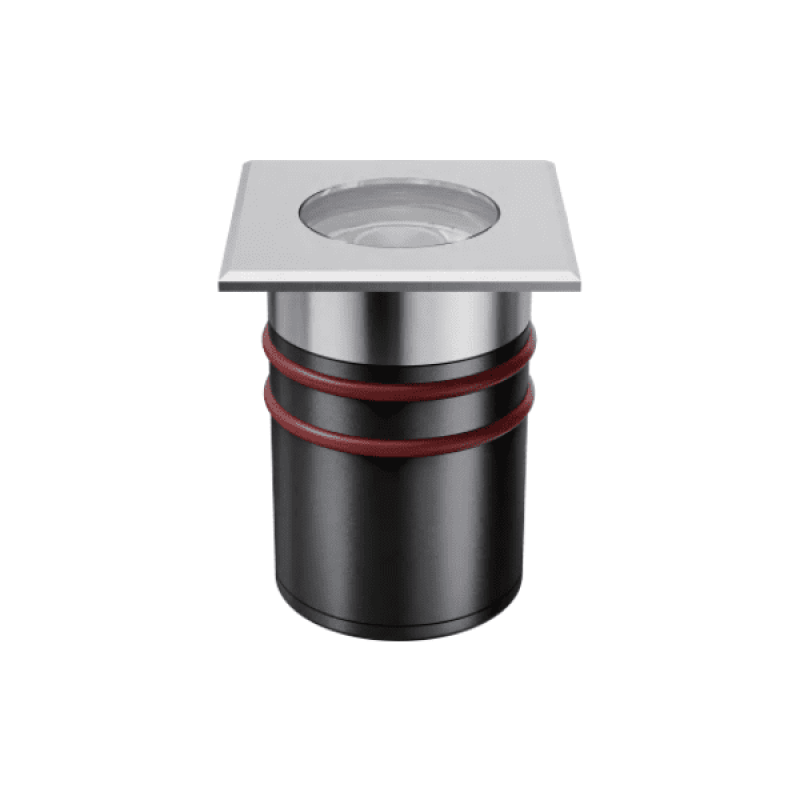

DRIVE ON S

Item code: 86.OI10.0341.07

Product type: Outdoor
Category: Recessed Inground Floor
Family: DRIVE ON
Subfamily: DRIVE ON S

Description

Lavov Recessed Inground from the family DRIVE ON S with a power of 4.5W and a 55 degrees beam angle.

Technical description

Lavov Recessed Inground from the family DRIVE ON S with a power of 4.5W and a 55 degrees beam angle. With a total lumen output of 395lm and a luminous efficiency of 87.8lm/W. Made in Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover and finished in Stainless steel colour. IP67 and IK10 degree of protection ON-OFF driver.

Materials

Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover

Optical system

Lens of 55degrees beam angle.With high efficiency (>90%).

Product

Real power (W)

4.5

Real luminous flux (Lm)

395

Luminous efficiency (Lm/W)

87.8

Beam angle (ยบ)

55

Life time (h)

50000h L80B10

IP

67

Electrical class insulation

Class I

Colour

Stainless steel

Equipment

Control gear included

Yes

Control gear

ON-OFF

Dimensions

Product dimensions (mm)

50x50x75mm

Light Source

Light source

CREE 1304

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

80

IK

IK10

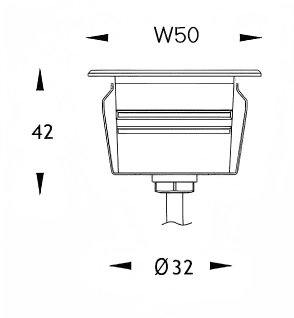

Scheme

86.OI10.0341.**-scheme-01
