ING-AD

Item code: 86.OI20.2321.07

Product type: Outdoor
Category: Recessed Inground Floor
Family: ING
Subfamily: ING-AD

Description

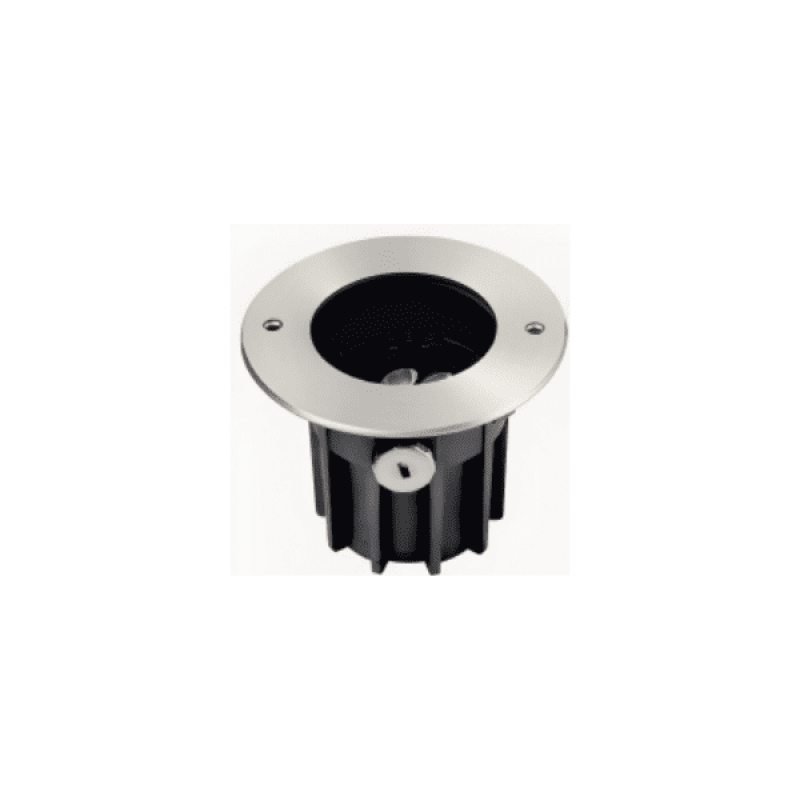

Lavov recessed inground floor from the family ING-AD adjustable, with a power of 5.3W and a 8 degrees beam angle. Finished in Stainless steel colour.Dimensions ø130x133mm.

Technical description

Lavov recessed inground floor from the family ING-AD adjustable, with a power of 5.3W and a 8 degrees beam angle. Finished in Stainless steel colour.Dimensions ø130x133mm. With a total lumen output of 465lm and a luminous efficiency of 87.73lm/W. CCT 3000. Driver ON-OFF. Made in Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover. IP67. IK10

Materials

Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover

Optical system

Lenses

Product

Real power (W)

5.3

Real luminous flux (Lm)

465

Luminous efficiency (Lm/W)

87.73

Beam angle (º)

8

Life time (h)

50000h L80B10

IP

67

Electrical class insulation

Class I

Colour

Stainless steel

Equipment

Control gear included

Yes

Control gear

ON-OFF

Dimensions

Product dimensions (mm)

ø130x133mm

Light Source

Light source

2x3W CREE

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

80

IK

IK10

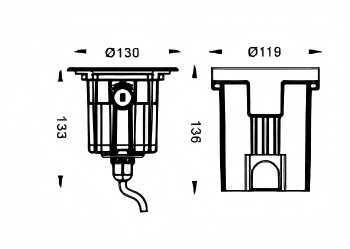

Scheme

86.OI20.2321.07-scheme-01
