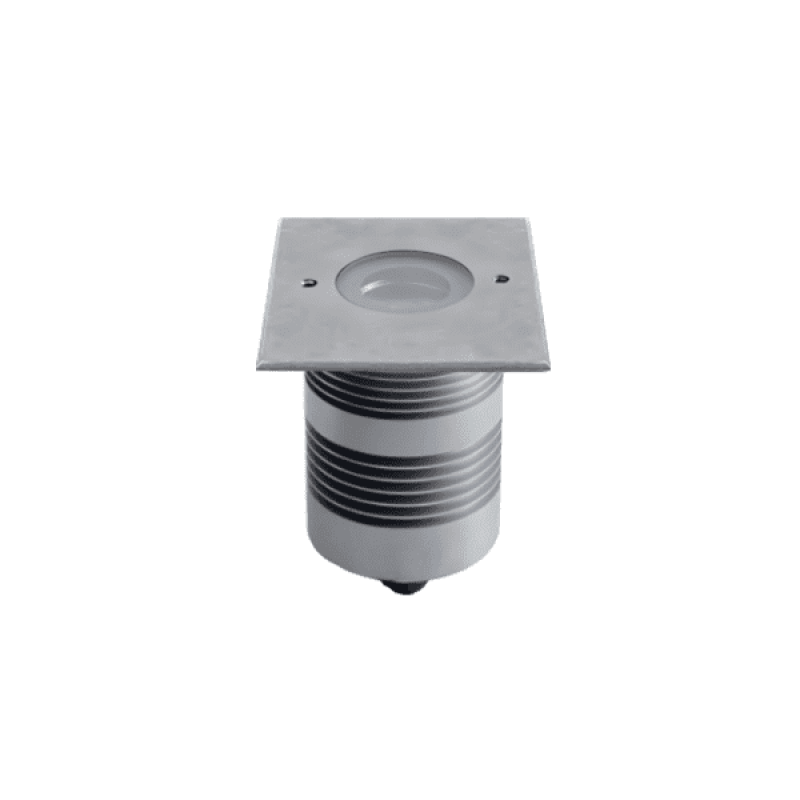

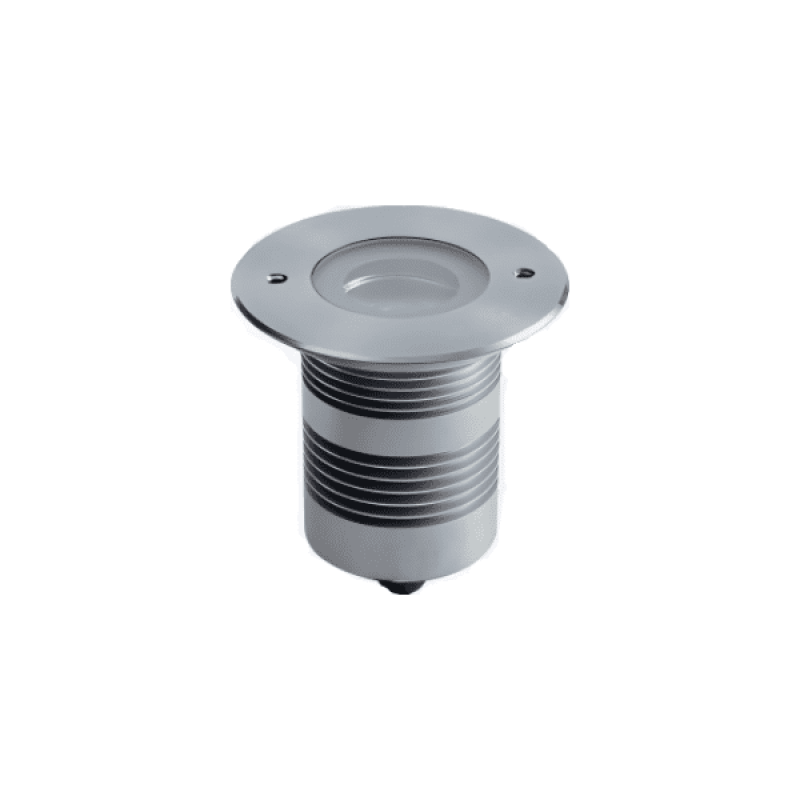

ING-M

Item code: 86.OIN3.1341.07

Product type: Outdoor
Category: Recessed Inground Floor
Family: ING
Subfamily: ING-M

Description

Lavov recessed inground floor from the family ING-M, with a power of 13W and a 60 degrees beam angle. Finished in Stainless steel colour.Dimensions ø116x98mm.

Technical description

Lavov recessed inground floor from the family ING-M, with a power of 13W and a 60 degrees beam angle. Finished in Stainless steel colour.Dimensions ø116x98mm. With a total lumen output of 1325lm and a luminous efficiency of 101lm/W. CCT 3000. Driver ON-OFF. Made in Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover. IP67. IK09

Materials

Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover

Optical system

Reflectors of 18o, 24o and 32o beam angles available with high efficiency >90%

Product

Real power (W)

13

Real luminous flux (Lm)

1325

Luminous efficiency (Lm/W)

101

Beam angle (º)

60

Life time (h)

50000h L80B10

IP

67

Electrical class insulation

Class I

Colour

Stainless steel

Equipment

Control gear included

Yes

Control gear

ON-OFF

Dimensions

Product dimensions (mm)

ø116x98mm

Light Source

Light source

1x13W CREE COB

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

80

IK

IK09

Scheme

86.OIN3.1341.07-scheme-01
