LINEAR

Item code: 86.OIN8.3061.03

Product type: Outdoor
Category: Recessed Inground Floor
Family: LINEAR

Description

Lavov recessed inground floor from the family LINEAR, with a power of 84W and a 10*45 degrees beam angle. Finished in Stainless steel colour.Dimensions 55x80x1000mm.

Technical description

Lavov recessed inground floor from the family LINEAR, with a power of 84W and a 10*45 degrees beam angle. Finished in Stainless steel colour.Dimensions 55x80x1000mm. With a total lumen output of 2780lm and a luminous efficiency of 33lm/W. CCT RGBW 4 in 1K. Driver not included . Made in Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover. IP67. IK07

Materials

Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover

Optical system

Lenses

Product

Real power (W)

84

Real luminous flux (Lm)

2780

Luminous efficiency (Lm/W)

33

Beam angle (ยบ)

10*30

Life time (h)

50000h L80B10

IP

67

Electrical class insulation

Class I

Colour

Stainless steel

Equipment

Control gear included

Yes

Control gear

not included

Dimensions

Product dimensions (mm)

55x80x1000mm

Light Source

Light source

24x2.0W Osram

Colour temperature (K)

RGBW 4 in 1

Colour consistency (SDCM)

SDCM<3

CRI

80

IK

IK07

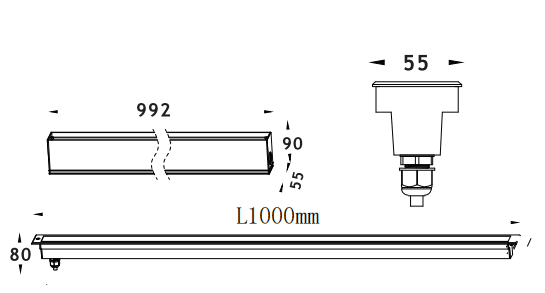

Scheme

86.OIN8.3061.03-scheme-01
