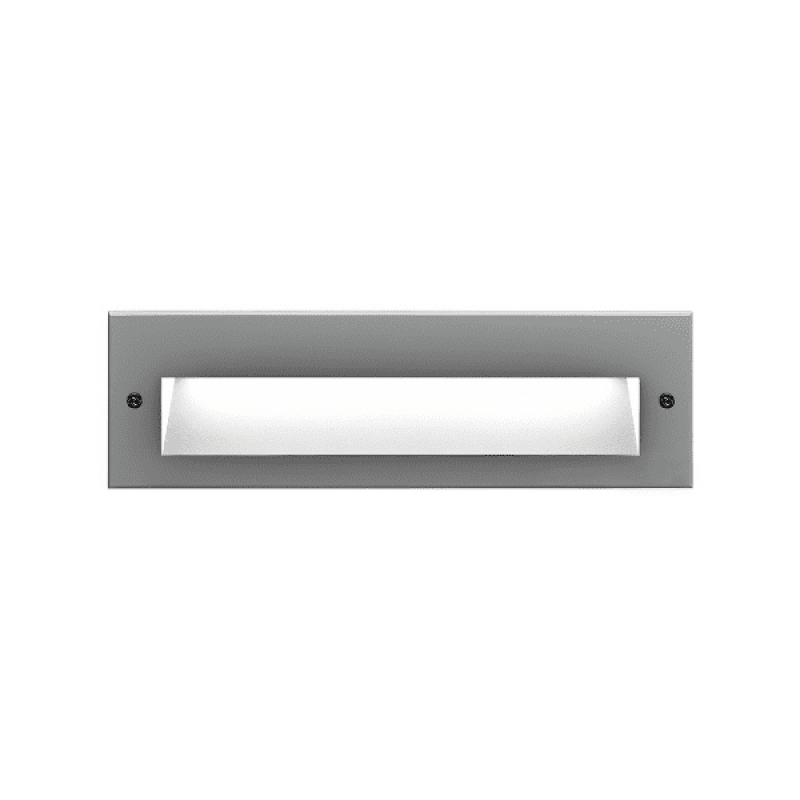

WINDOW H

Item code: 86.OR01.2331.02

Product type: Outdoor
Category: Recessed Wall & Ceiling
Family: WINDOW
Subfamily: WINDOW H

Description

Lavov recessed fixture from the family WINDOW H with a power of 16W and a assymmetric beam angle. Finished in Black colour.Dimensions 310x100x66.5mm.

Technical description

Lavov recessed fixture from the family WINDOW H with a power of 16W and a assymmetric beam angle. Finished in Black colour.Dimensions 310x100x66.5mm.. With a total lumen output of 800lm and a luminous efficiency of 49.73lm/W. CCT 3000K. Driver ON-OFF. Made in Die Cast Aluminium Body, Front Cover Tempered Glass. .IP65. IK10

Materials

Die Cast Aluminium Body, Front Cover Tempered Glass

Optical system

Lenses

Product

Real power (W)

16

Real luminous flux (Lm)

800

Luminous efficiency (Lm/W)

49.73

Beam angle (ยบ)

assymmetric

Life time (h)

50000h L80B10

IP

IP65

Colour

Black

Equipment

Control gear included

Yes

Control gear

ON-OFF

Dimensions

Product dimensions (mm)

310x100x66.5mm

Light Source

Light source

LED

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

90

IK

IK10

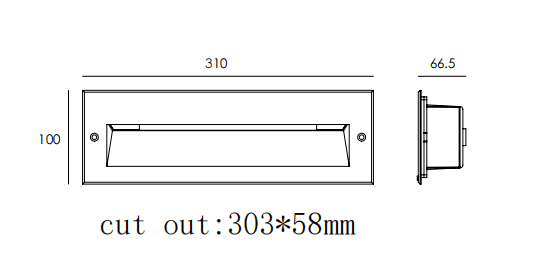

Scheme

86.OR01.2331.xx-scheme-01
