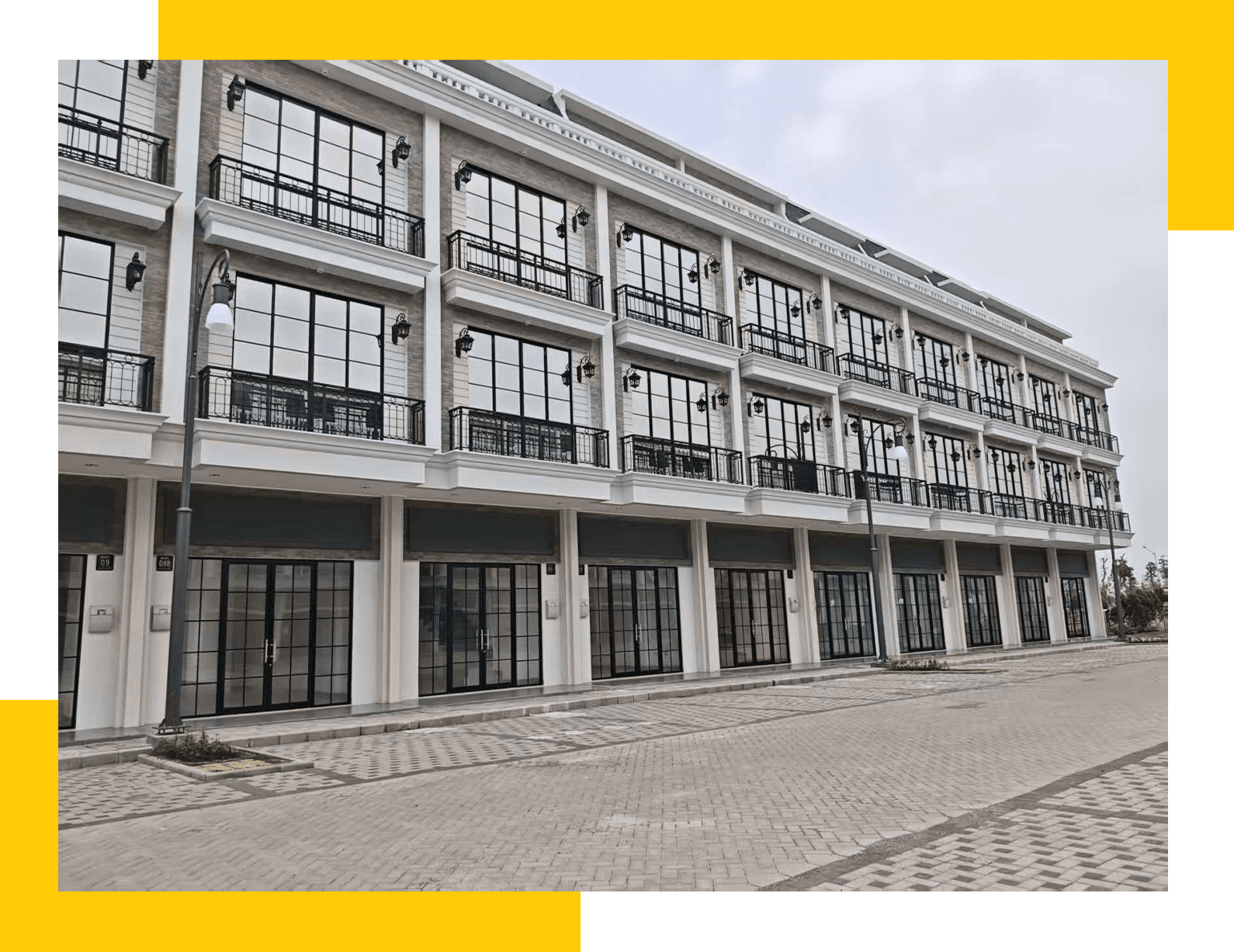

The Harvard and Stanford clusters within Kawasan Educity at Pantai Indah Kapuk 2 (PIK 2) represent a significant milestone in modern Indonesian urban planning, blending academic environments with high-end commercial and residential zones. These clusters feature "Rukan" (shop-houses) that draw heavy inspiration from classical European architectural styles, requiring a lighting strategy that honors this heritage while providing modern performance. Under the management of PT Mandiri Bangun Makmur, the project implemented a comprehensive hardscape lighting design to define the prestigious character of the neighborhood during the evening hours.
The technical core of the project involved the installation of decorative pedestrian lamps standing seven meters tall, designed to provide consistent and safe illumination across the primary transit zones. The lamp poles were manufactured from high-quality aluminum and finished in a sophisticated Umbragrau (RAL 7022) powder coating, ensuring they remain visually unobtrusive during the day while resisting the coastal elements of PIK 2. Each fixture utilized high-performance 80W LED modules producing approximately 10,046 lumens. A color temperature of 3000K Warm White was selected to foster an inviting environment that accentuates the detailed facades and creates a cozy, luxury atmosphere for residents and visitors.

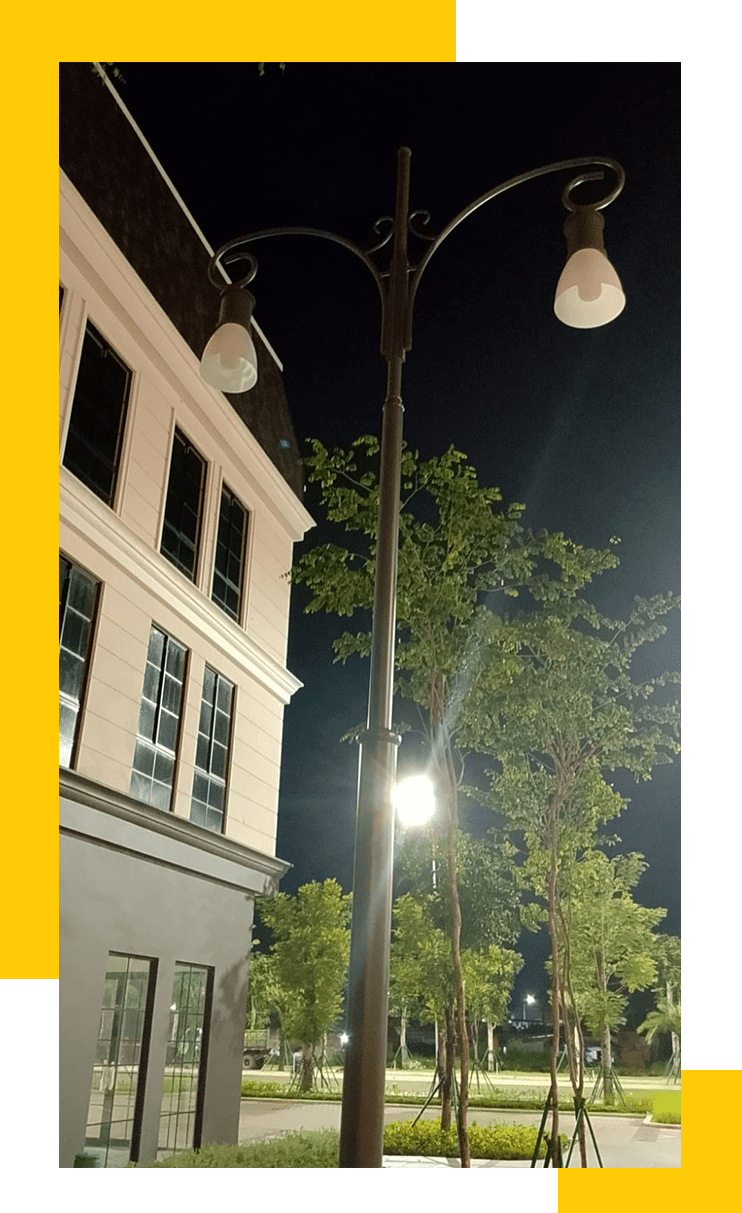

To maximize both safety and aesthetic impact, the implementation was strategically divided across functional zones within the Harvard cluster. For the bustling thoroughfare of Harvard Market Street, 52 double-arm lamps were deployed to provide broad, symmetrical light distribution across the wide lanes.

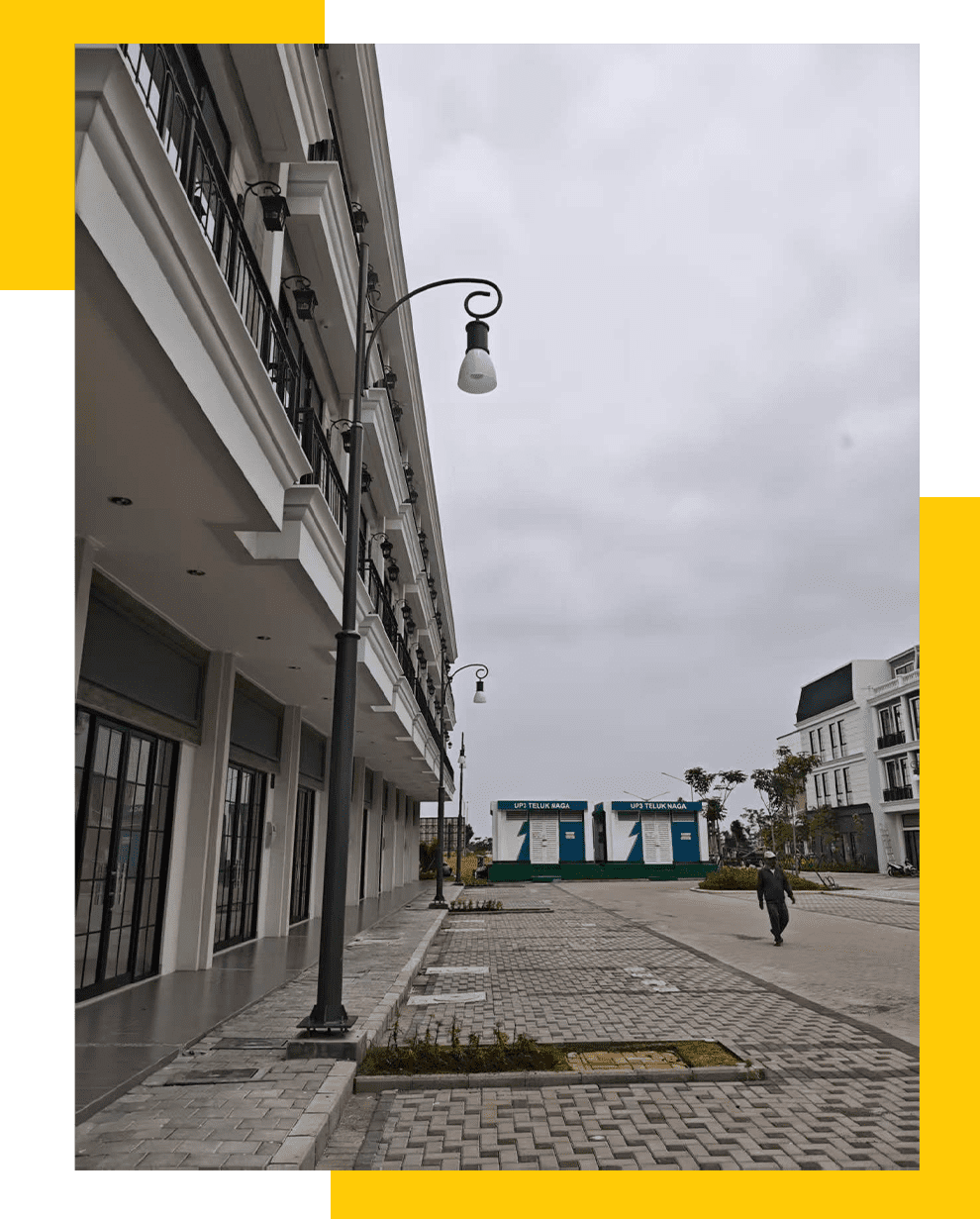

In the commercial parking areas of Parkir Rukan Harvard, the strategy utilized a mixture of 15 double-arm and 121 single-arm lamps. This tiered distribution ensures that parking stalls and building entrances receive focused illumination, effectively eliminating shadows and enhancing security across the commercial complex. The double-arm configuration provides balanced coverage for two lanes, while the single-arm variants offer targeted lighting for adjacent sidewalks.

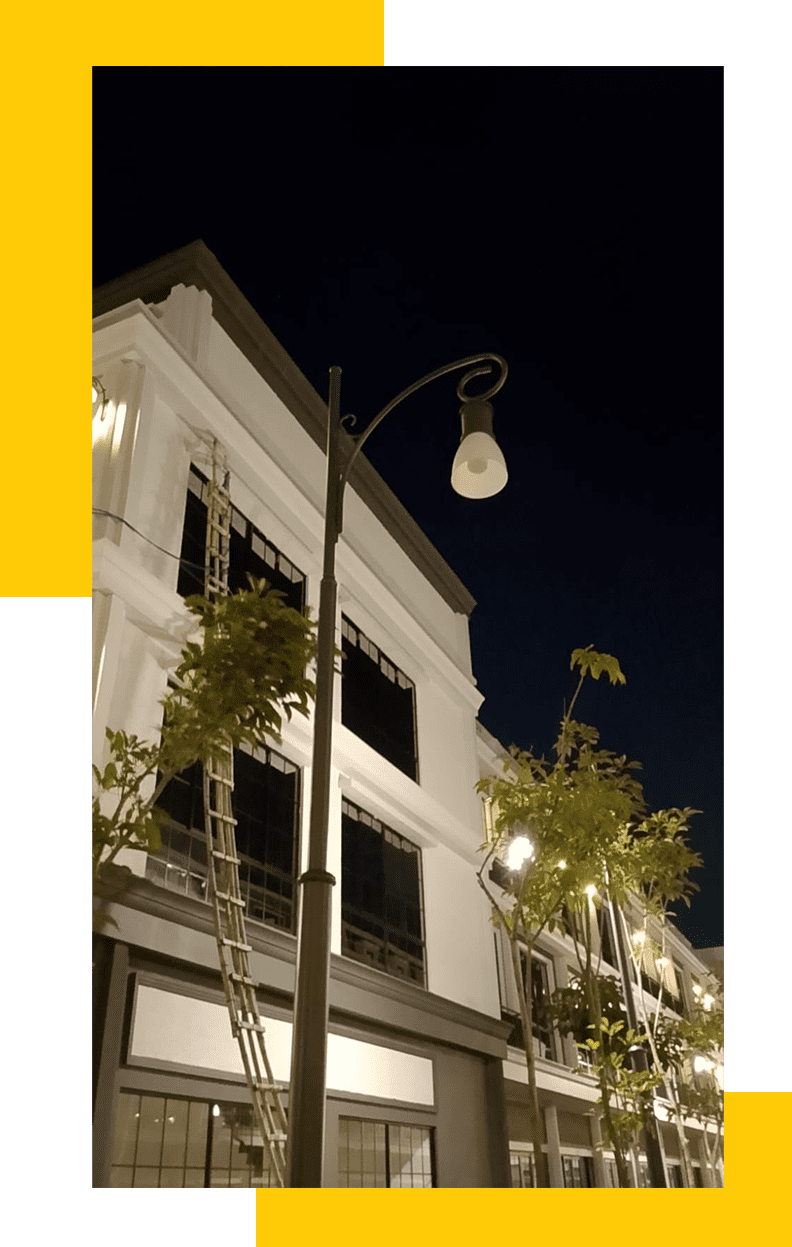

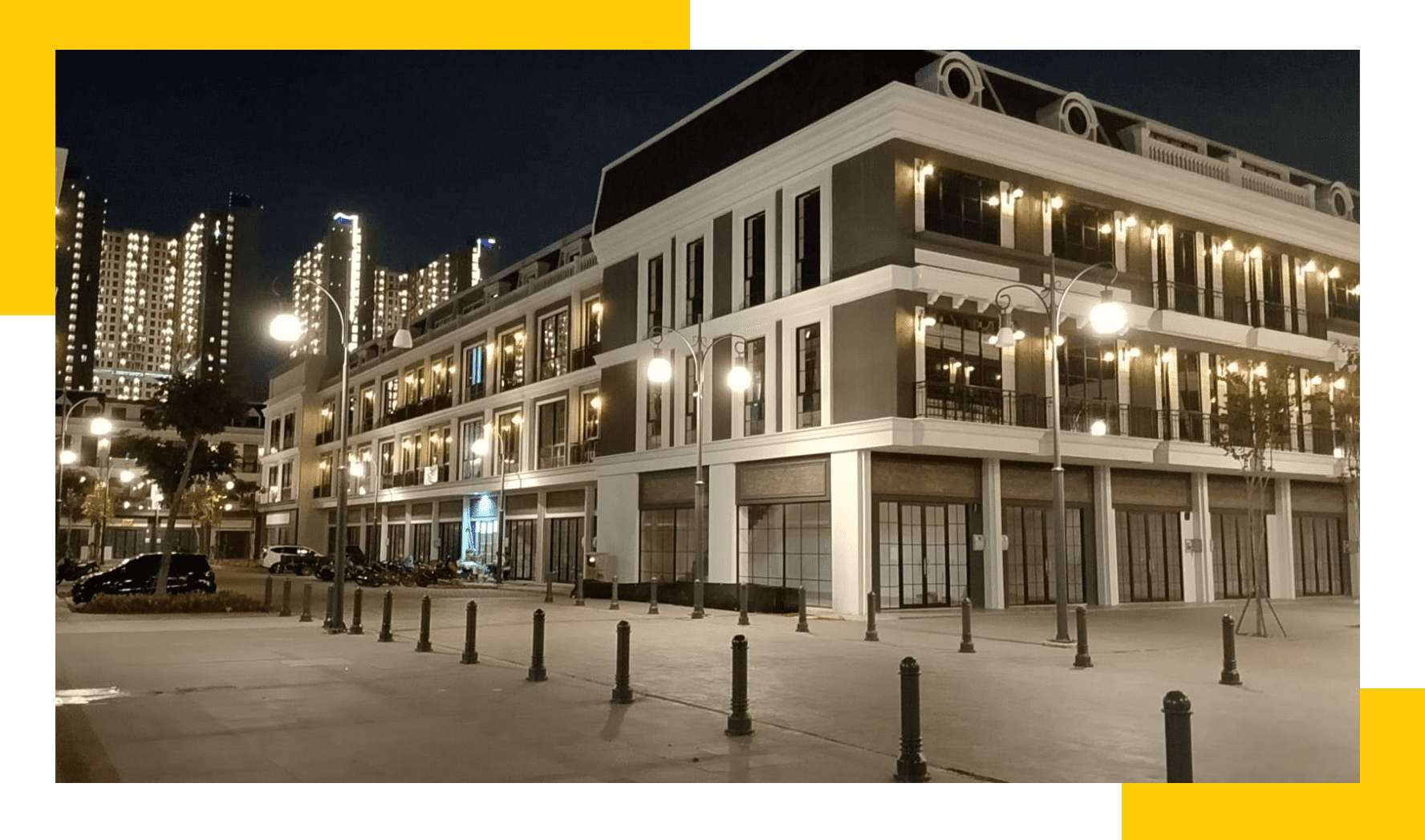

The final result is an evening landscape where the Harvard and Stanford clusters feel both safe and distinctively sophisticated. The curly, ornamental armatures of the lamps provide a rhythmic visual texture that complements the traditional window treatments and balconies of the surrounding shophouses. By combining state-of-the-art LED technology with a design that respects the cultural and aesthetic intent of PIK 2, the project successfully bridges the gap between classical decorative intent and high-performance urban infrastructure. This lighting network not only facilitates late-night commerce but also establishes a distinct visual identity for Kawasan Educity as a premier destination in North Jakarta.
