MLINE

Item code: 86.L002.2402.01

Product type: Indoor
Category: Linear Systems
Family: MLINE
Subfamily: MLINE

Description

Lavov linear system from the family MLINE with a power of 40W and an optics 110 degrees beam angle. CCT 4000. CRI 80.

Technical description

Lavov linear system from the family MLINE with a power of 40W and an optics 110 degrees beam angle. CCT 4000. CRI 80. PC Diffuser. UGR22. With a total lumen output of 4000lm and an efficacy of 100lm/W . Made in Extruded Aluminium and finished in White color. 0-10V Dim driver.

Materials

Extruded Aluminium

Installation instructions

Difusor PC

Product

Real power (W)

40

Real luminous flux (Lm)

4000

Luminous efficiency (Lm/W)

100

Beam angle (ยบ)

110

Life time (h)

50000h L80B10

IP

20

Colour

White

U. G. R

22

Equipment

Control gear included

Yes

Control gear

0-10V Dim

Dimensions

Product dimensions (mm)

75x75X1200mm

Light Source

Colour temperature (K)

4000

Colour consistency (SDCM)

SDCM<3

CRI

80

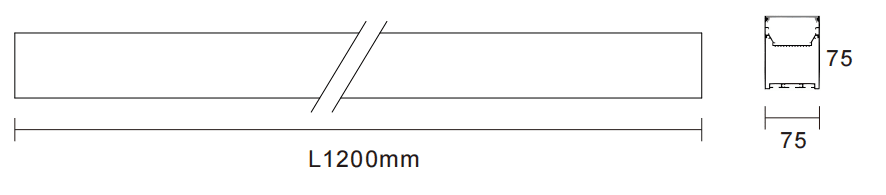

Scheme

86.L002.2402.**-scheme-01
