PILAR

Item code: 86.OC01.1331.01

Product type: Outdoor
Category: Surface Ceiling Downlight
Family: PILAR

Description

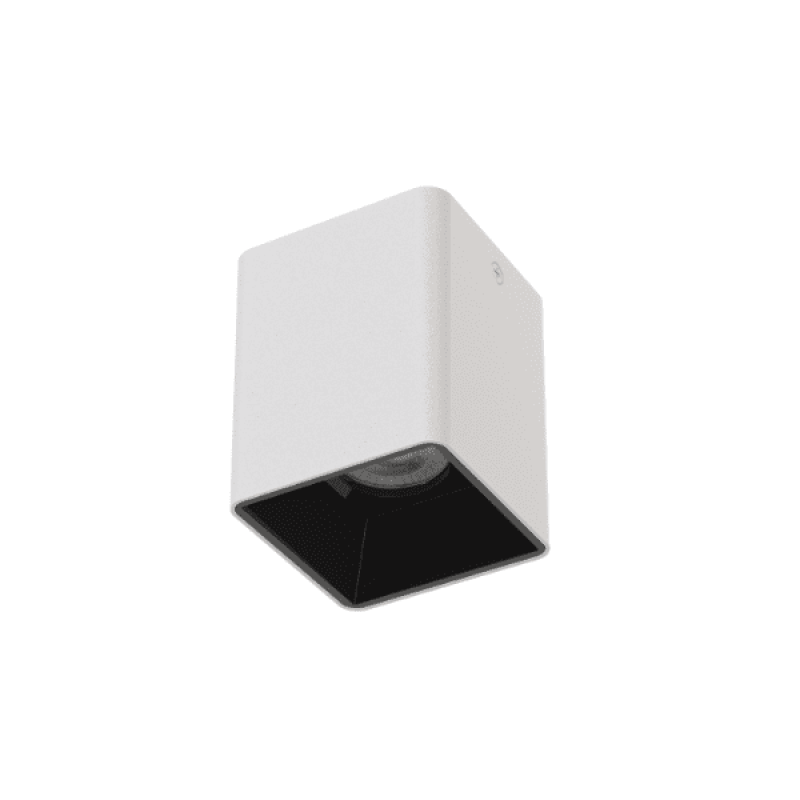

Surface Ceiling Downlight fixture from the family PILAR with a power of 21 W and a 32 degrees beam angle.

Technical description

Surface Ceiling Downlight fixture from the family PILAR with a power of 21 W and a 32 degrees beam angle. With a real lumen output of 1705lm and a luminous efficiency of 81.19lm/W. Made in Die Cast Aluminium Body, Front Cover Tempered Glass with an IP65 and an IK06 degree of protection. Finished in White color. ON-OFF driver included

Materials

Die Cast Aluminium Body, Front Cover Tempered Glass

Optical system

There are three different reflector beams of 12°, 18° and 32°.

Product

Real power (W)

21

Real luminous flux (Lm)

1705

Luminous efficiency (Lm/W)

81.19

Beam angle (º)

32

Life time (h)

50000h L80B10

IP

65

Electrical class insulation

Class I

Colour

White

Chip Brand

Nichia

Equipment

Control gear included

Yes

Control gear

ON-OFF

Light Source

Light source

LED

Type of LED

1*18W Nichia COB

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

>80

IK

IK06

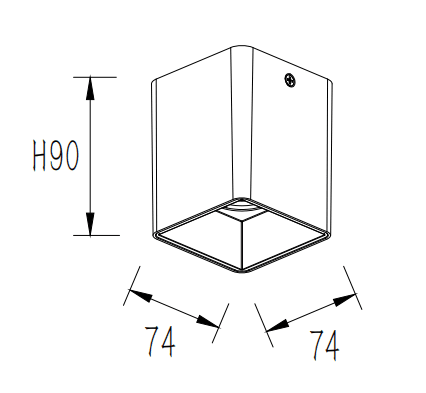

Scheme

86.OC01.1331.01-scheme-01
