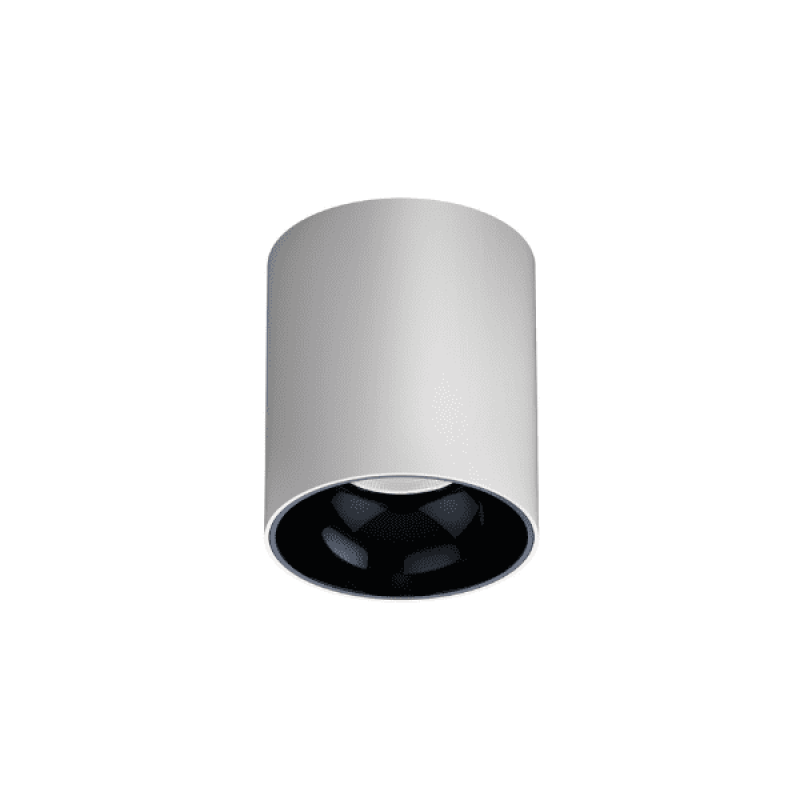

SDOWN

Item code: 86.OC02.3323.03

Product type: Outdoor
Category: Surface Ceiling Downlight
Family: SDOWN

Description

Lavov outdoor wall light from the family SDOWN with a power of 40W and a optic distribution 25º .

Technical description

Lavov outdoor wall light from the family SDOWN with a power of 40W and a optic distribution 25º . With a total lumen output of 3250lm and an efficiency of 81.25lm/W. Manufactured in Die Cast Aluminium Body, Front Cover Tempered Glass and finished in Grey colour. DALI driver.

Materials

Die Cast Aluminium Body, Front Cover Tempered Glass

Optical system

Reflecor

Product

Real power (W)

40

Real luminous flux (Lm)

3250

Luminous efficiency (Lm/W)

81.25

Beam angle (º)

25º

Life time (h)

50000h L80B10

IP

65

Electrical class insulation

Class I

Colour

Grey

Equipment

Control gear included

Yes

Control gear

DALI

Dimensions

Product dimensions (mm)

diam 160x183mm

Light Source

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

>80

IK

06

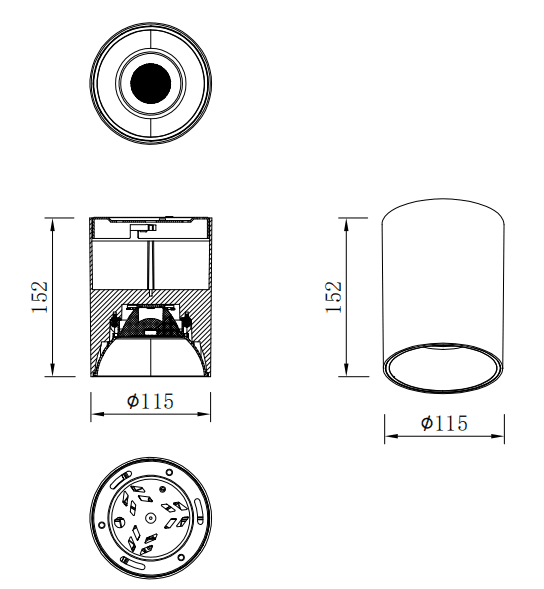

Scheme

86.OC02.3323.**-scheme-01 86.OC02.3323.03-scheme-01
