ING-XL

Item code: 86.OIN5.1321.07

Product type: Outdoor
Category: Recessed Inground Floor
Family: ING
Subfamily: ING-XL

Description

Recessed Inground Floor from the family ING-XL with a power of 18,5W and a beam angle of 22 degrees.

Technical description

Recessed Inground Floor from the family ING-XL with a power of 18,5W and a beam angle of 22 degrees. with a real lumen output of 1530 lm, and an efficiency of 82,7 lm/W, made in Die Cast Aluminium Body, Front Ring Stainless Steal. , Tempered Glass Cover and finished in Stainless Steal. ON-OFF driver.

Materials

Die Cast Aluminium Body, Front Ring stainless Steel, Tempered Glass Cover

Optical system

Reflectors of 12o, 22o and 35o beam angles available with high efficiency >90% .

Product

Real power (W)

18.5

Real luminous flux (Lm)

1530

Luminous efficiency (Lm/W)

82.7

Beam angle (ยบ)

22

Life time (h)

50000h L80B10

IP

66

Electrical class insulation

Class I

Colour

Stainless steel

Equipment

Control gear included

Yes

Control gear

ON-OFF

Light Source

Light source

1x18W Nichia COB

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

80

IK

10

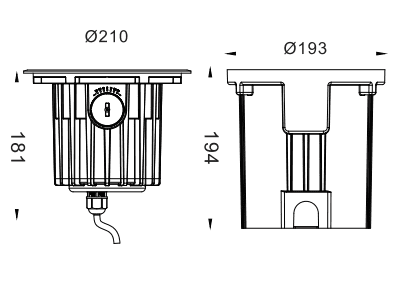

Scheme

86.OIN5.1321.07-scheme-01
