ING-ASSY

Item code: 86.OIN6.1351.07

Product type: Outdoor
Category: Recessed Inground Floor
Family: ING-ASSY

Description

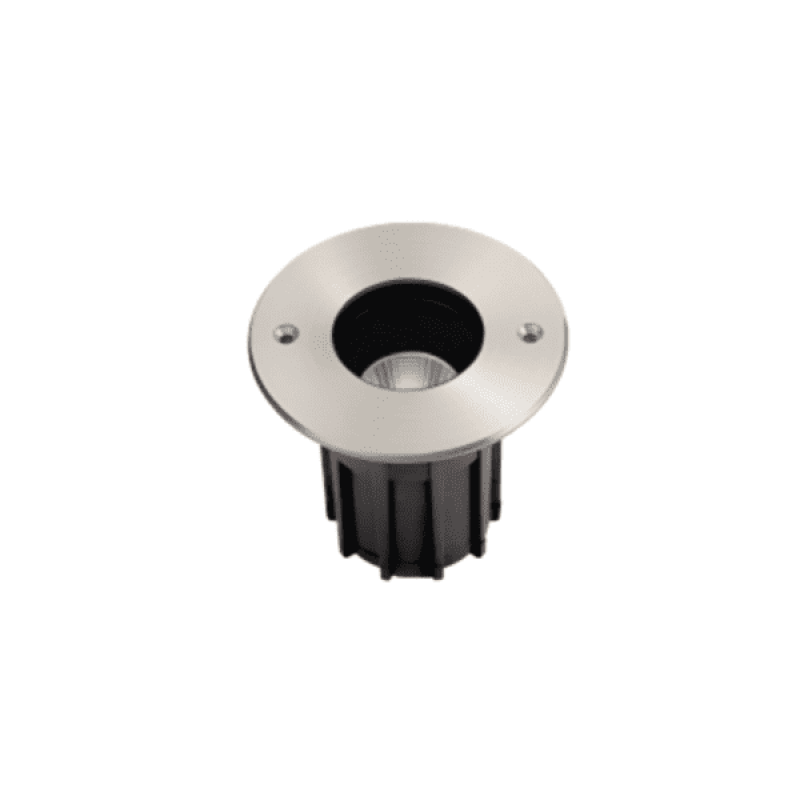

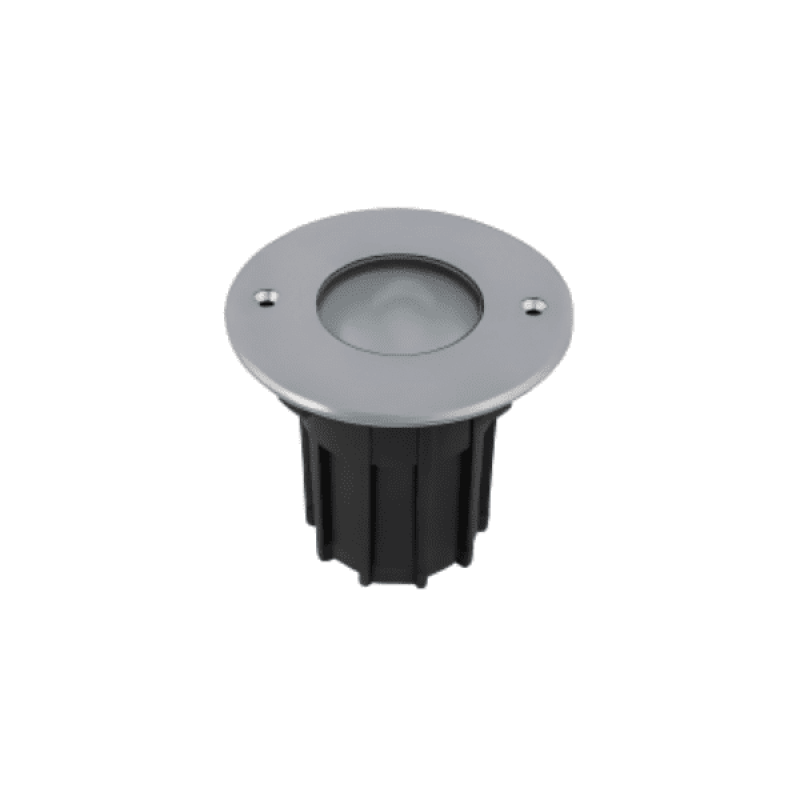

Lavov recessed inground floor from the family ING-ASSY, with a power of 3.5W and a Asymmetric 27° degrees beam angle. Finished in Stainless steel colour.Dimensions ø95x116mm.

Technical description

Lavov recessed inground floor from the family ING-ASSY, with a power of 3.5W and a Asymmetric 27° degrees beam angle. Finished in Stainless steel colour.Dimensions ø95x116mm. With a total lumen output of 250lm and a luminous efficiency of 71.400000000000006lm/W. CCT 3000. Driver On-Off. Made in Die cast aluminium body, stainless steel front ring and tempered glass cover. IP67. IK09

Materials

Die cast aluminium body, stainless steel front ring and tempered glass cover

Optical system

Reflector

Product

Real power (W)

3.5

Real luminous flux (Lm)

250

Luminous efficiency (Lm/W)

71.400000000000006

Beam angle (º)

Asymmetric 27°

Life time (h)

50000h L80B10

IP

67

Electrical class insulation

Class I

Colour

Stainless steel

Equipment

Control gear included

yes

Control gear

On-Off

Flicker Free

Yes

Dimensions

Product dimensions (mm)

ø95x116mm

Light Source

Light source

1x5W CREE COB

Colour temperature (K)

3000

Colour consistency (SDCM)

<5SDCM

CRI

80

IK

IK09

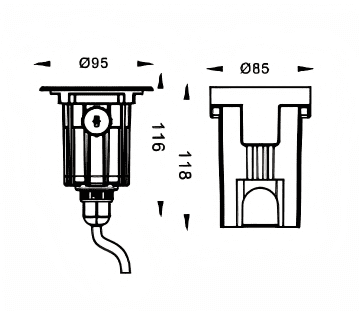

Scheme

86.OIN6.1351.07-scheme-01
