ING-ASSY

Item code: 86.OIN6.6351.07

Product type: Outdoor
Category: Recessed Inground Floor
Family: ING-ASSY

Description

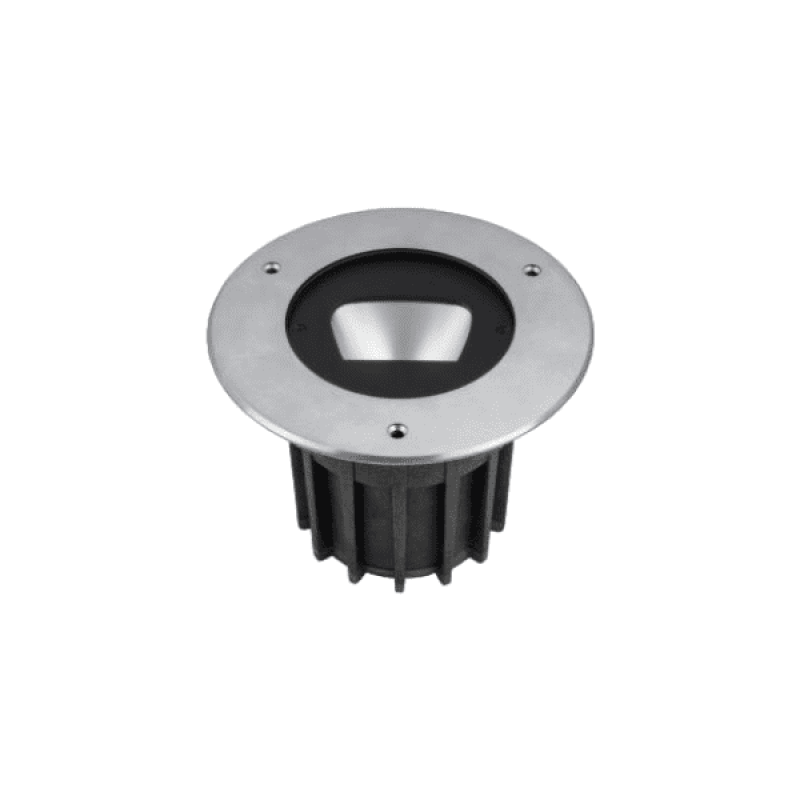

Lavov recessed inground floor from the family ING-ASSY, with a power of 34W and a Asymmetric 27° degrees beam angle. Finished in Stainless steel colour.Dimensions ø250x190mm.

Technical description

Lavov recessed inground floor from the family ING-ASSY, with a power of 34W and a Asymmetric 27° degrees beam angle. Finished in Stainless steel colour.Dimensions ø250x190mm. With a total lumen output of 2600lm and a luminous efficiency of 76.5lm/W. CCT 3000. Driver On-Off. Made in Die cast aluminium body, stainless steel front ring and tempered glass cover. IP67. IK09

Materials

Die cast aluminium body, stainless steel front ring and tempered glass cover

Optical system

Reflector

Product

Real power (W)

34

Real luminous flux (Lm)

2600

Luminous efficiency (Lm/W)

76.5

Beam angle (º)

Asymmetric 27°

Life time (h)

50000h L80B10

IP

67

Electrical class insulation

Class I

Colour

Stainless steel

Equipment

Control gear included

yes

Control gear

On-Off

Flicker Free

Yes

Dimensions

Product dimensions (mm)

ø250x190mm

Light Source

Light source

1x35W CREE COB

Colour temperature (K)

3000

Colour consistency (SDCM)

<5SDCM

CRI

80

IK

IK09

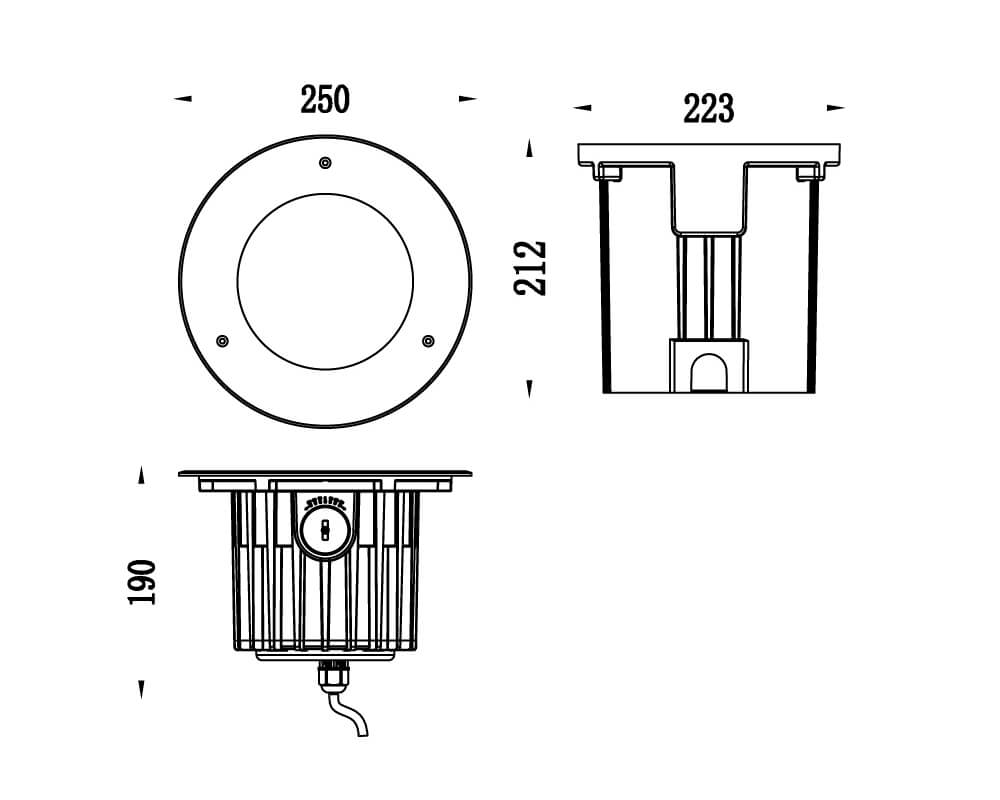

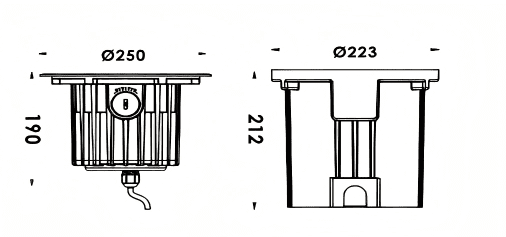

Scheme

86.OIN6.6351.07-scheme-01
