UP&DOWNT

Item code: 86.OW09.2323.03

Product type: Outdoor
Category: Wall Light
Family: UP&DOWNT

Description

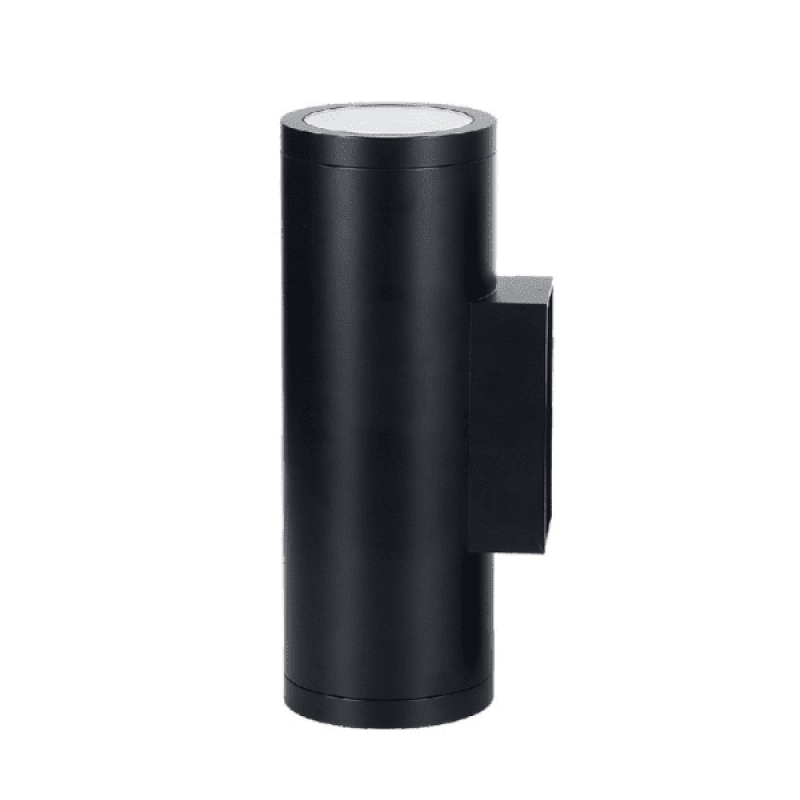

UP&DOWNT is a wall light with round design emitting light up and down. With a size of Ø80mmx200mm has a power of 2x8W and two reflectors up&down of 24 degrees beam angle.

Technical description

UP&DOWNT is a wall light with round design emitting light up and down. With a size of Ø80mmx200mm has a power of 2x8W and two reflectors up&down of 24 degrees beam angle.With a real lumen output of 1972lm, and an efficiency of 123.25lm/W. Is made in Die Cast Aluminium Body, Tempered Glass Cover and has an IP65 and an IK10 degree of protection. DALI driver. Finished in Grey color.

Materials

Die Cast Aluminium Body, Tempered Glass Cover

Optical system

Reflector

Product

Real power (W)

8

Real luminous flux (Lm)

1972

Luminous efficiency (Lm/W)

123.25

Beam angle (º)

24

Life time (h)

50000h L70B10

IP

65

Electrical class insulation

Class I

Colour

Grey

Chip Brand

NICHIA

Equipment

Control gear included

Yes

Control gear

DALI

Light Source

Colour temperature (K)

3000

Colour consistency (SDCM)

SDCM<3

CRI

80

IK

IK10

Scheme

86.OW09.2323.**-scheme-01
