Sky panel tuneable

Item code: 86.R021.2561.01

Product type: Indoor
Category: Recessed Fixtures
Family: SKYPANEL
Subfamily: Sky panel tuneable

Description

Lavov reecessed luminaire from the family Sky panel tuneable with a power of 86W and a beam angle of 30º side 38º . UGR<15. Finished in White colour.

Technical description

Lavov reecessed luminaire from the family Sky panel tuneable with a power of 86W and a beam angle of 30º side 38º . UGR<15. Finished in White colour. With a total lumen output of 3440lm and a luminous efficacy of 40lm/W. Made in Aluminum Frame + Steel housing and PMMA lens. Driver Tuya App dimable. CCT 2700-6500K. CRI>86. Dimensions 596*596*280mm.

Materials

Aluminum Frame + Steel housing and PMMA lens

Optical system

Lens in PMMA

Product

Real power (W)

86

Real luminous flux (Lm)

3440

Luminous efficiency (Lm/W)

40

Beam angle (º)

30º side 38º

Life time (h)

80000h L80B10

IP

20

Electrical class insulation

II

Colour

White

U. G. R

<15

Equipment

Control gear included

Yes

Control gear

Tuya App dimable

Dimensions

Product dimensions (mm)

596*596*280mm

Light Source

Colour temperature (K)

2700-6500

Colour consistency (SDCM)

SDCM<3

CRI

86

IK

04

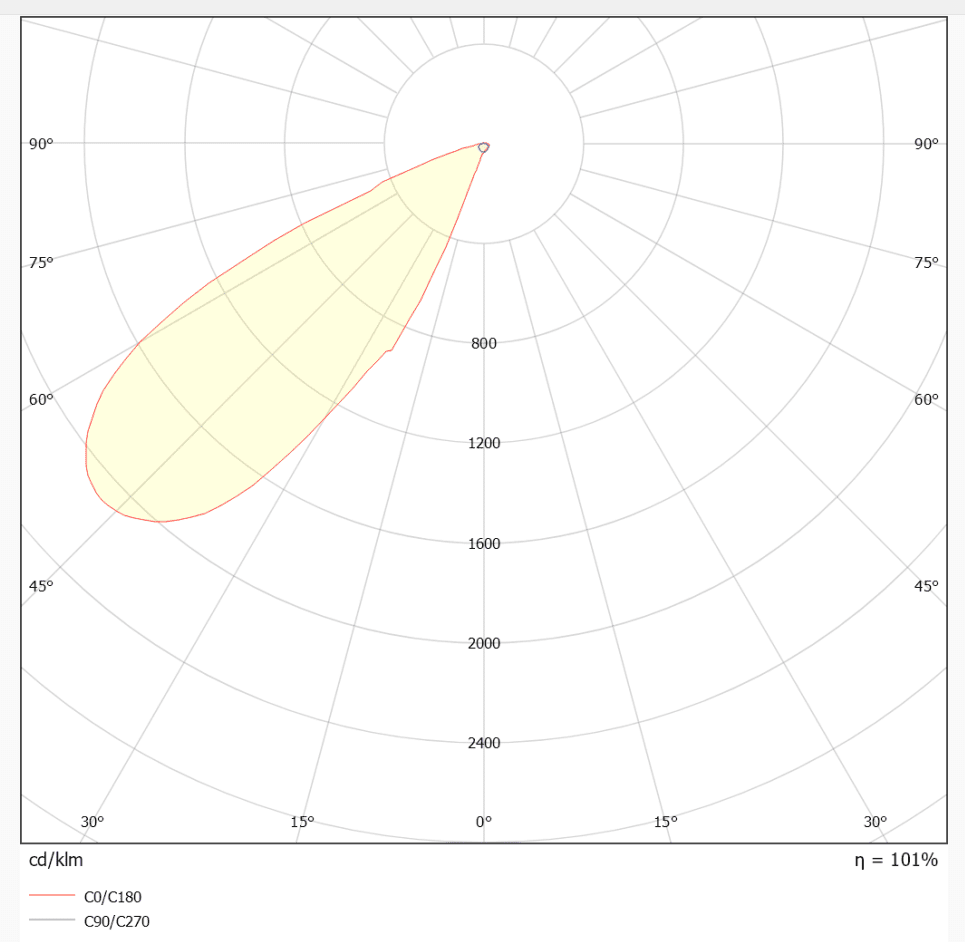

Scheme

86.R021.2561.xx-scheme-01
