Sky downlight symmetric

Item code: 86.R022.1521.01

Product type: Indoor
Category: Recessed Fixtures
Family: SKYPANEL
Subfamily: Sky downlight symmetric

Description

Lavov reecessed luminaire from the family Sky downlight symmetric with a power of 32W and a beam angle of 28º . UGR<15. Finished in White colour.

Technical description

Lavov reecessed luminaire from the family Sky downlight symmetric with a power of 32W and a beam angle of 28º . UGR<15. Finished in White colour. With a total lumen output of 2560lm and a luminous efficacy of 80lm/W. Made in Aluminum Frame + Steel housing and PMMA lens. Driver On-Off. CCT 6500K. CRI>90. Dimensions 296*148*93mm.

Materials

Aluminum Frame + Steel housing and PMMA lens

Optical system

Lens in PMMA

Product

Real power (W)

32

Real luminous flux (Lm)

2560

Luminous efficiency (Lm/W)

80

Beam angle (º)

28º

Life time (h)

80000h L80B10

IP

20

Electrical class insulation

II

Colour

White

U. G. R

<15

Equipment

Control gear included

Yes

Control gear

On-Off

Dimensions

Product dimensions (mm)

296*148*93mm

Light Source

Colour temperature (K)

6500

Colour consistency (SDCM)

SDCM<3

CRI

90

IK

04

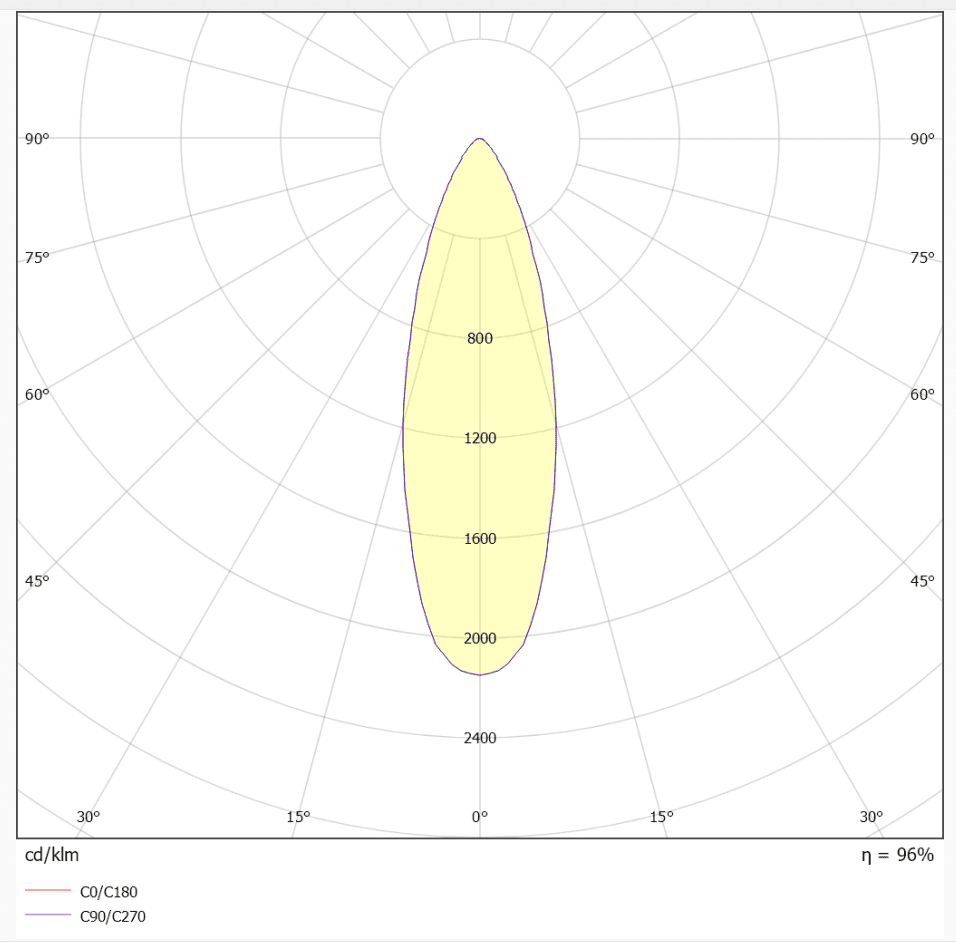

Scheme

86.R022.1521.xx-scheme-01
