Individual UP&D

Item code: 86.L005.3411.01

Product type: Indoor
Category: Linear Systems
Family: Viewline
Subfamily: Individual UP&D

Description

Lavov linear luminaire from the family Viewline Individual UP&D with a power of 84W and a beam angle of 65 degrees. CCT 4000K and UGR<16.

Technical description

Lavov linear luminaire from the family Viewline Individual UP&D with a power of 84W and a beam angle of 65 degrees. CCT 4000K and UGR<16.With a real lumen output of 4000+6000lm and a luminous efficiency of 119.04lm/w. Driver ON-OFF. Finished in white color.ON-OFF driver.

Materials

Extruded alumnium body, die cast aluminium end caps, mirror finished optics.

Optical system

Mirror reflector low glare.

Product

Real power (W)

84

Real luminous flux (Lm)

4200+6300

Luminous efficiency (Lm/W)

125

Beam angle (ยบ)

65

Colour

white

U. G. R

<16

Chip Brand

philip

Equipment

Control gear included

yes

Control gear

ON-OFF

Light Source

Light source

LED

Type of LED

SMD

Average life time (h)

50000h L80B10

Colour temperature (K)

4000

Colour consistency (SDCM)

<3SDCM

CRI

>80

IK

IK02

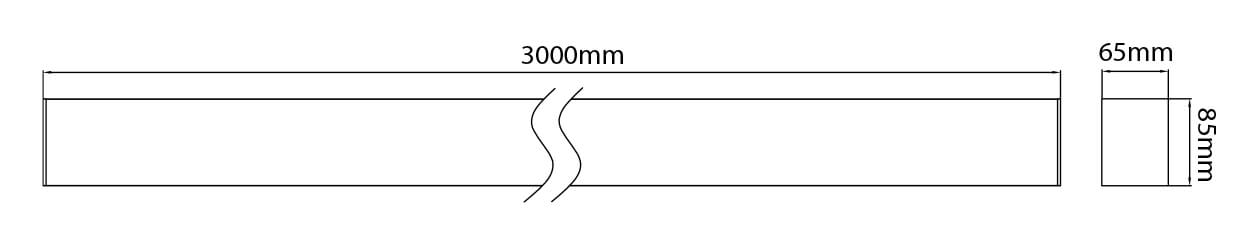

Scheme

86.L005.3411.**-scheme-01
